single phase DC-AC Solid State Rleay


Load current : 10~120A

Built -in RC

Dielectric strength 4000VWith LED Indicator

Zero-Cross or random turn on

DC or AC control

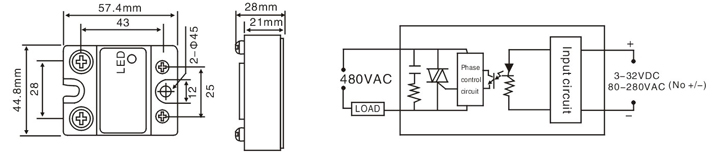

Outline & Installation Dimensions(mm) :

Specifications :

Control Voltage Range 3-32VDC
Max Input Current 12mA
Must Operation Voltage 2.8VDC
Must Release Voltage 1.5VDC
Load Voltage Range 24-480VAC
Peak Voltage 800V
Load Current 10A,15A,20A,25A,40A,50A,60A,75A,80A,90A,100A,120A
Max Off-State Leakage Current 2mA
Max On-State Voltage Drop 1.5V
L*W*H (mm) 57.4L*44.8W*28H
Weight 100g
Dielectric Strength (Input to output ) 4000V
Dielectric strength ( Input. output to base)
Operating temperature -25℃~80℃
Certification CE
