single phase AC-AC Solid State Rleay


Load Current : 10~120A

Built-in RC

With LED Indicator

Dielectric strength 4000V

Zero-cross or random turn-on

DC or AC control

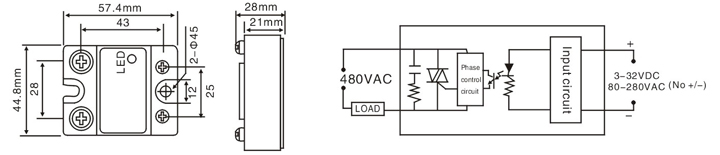

Outline & Installation Dimensions(mm) :

Specification :

Control Voltage Range 70-280VAC
Max Input Current 15mA
Must Operation Voltage 70VAC
Must Release Voltage 50VAC
Load Voltage Range 24-480VAC
Peak Voltage 800V
Load current 10A,15A,20A,25A,40A,50A,60A,75A,80A,90A,100A,120A
Max Off-State Leakage Current 2mA
Max On-State Voltage Drop 1.5V
L*W*H (mm) 57.4L*44.8W*28H
Weight 100g
Dielectric Strength ( Input to Output ) 4000V
Dielectric Strength ( Input , Output to base ) 2500V
Operating Temperature -20℃~80℃
Certfication CE
