 T78 type Subminiature low power auto relay 6v 12v 24v

Features

Ultra-small volume

Low power consumption

Large load contact

High seneitivity


Coil Parameters


Coil Power DC : 0.6W
Coil Specifications
Rate Voltage (VDC) Operate Voltage (VDC) Release Voltage (VDC) Coil Resistance ( Ω±10% )
5 ≤ 3.75 ≥0.5 42
6 ≤ 4.5 ≥0.6
60
9 ≤ 6.75
≥0.9
135
12 ≤ 9.0
≥1.2
240
15 ≤ 11.25
≥1.5
375
18 ≤ 13.5
≥1.8
540
24 ≤ 18.0
≥2.4
960
48 ≤ 36.0
≥4.8
3840


Contact Parameters


Contact Type 1H 1Z
Contact Material AgCdO, AgSnO2
Contact Resistance ≤ 100mΩ
Contact Load 15A 10A
Max Switching Voltage 250VAC / 30VDC
Lif Expectance Electrical 1*100000
Mechanical Life 1*10000000


Performance Parameters


Response time ≤10ms
Release time ≤5ms
Insulation resistance ≥100MΩ ( 500VDC
Dielectric withstanding voltage Between contacts 750VAC 50-60Hz  1Min
Between contacts & coils 1000VAC 50-60Hz   1Min


Environmental Parameters


Temperature -40℃~+85℃
Humidity 35%~85% RH
Atmospheric Pressure 86-106kPa
Installation Type PCB

Packing Parameters


Number Of Boxes 25pcs/Box
Carton Quantity 3000pcs/Carton
Packing Size 420mm*235mm*229mm
Weight 5.7g/pcs  GW : 18.5KG/Box

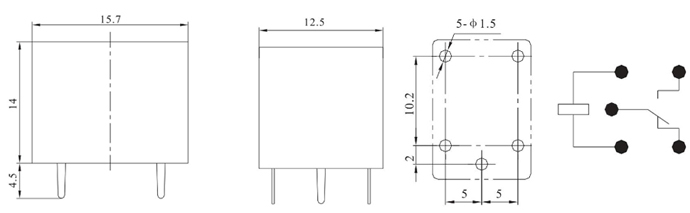

Dimension.Buttom View

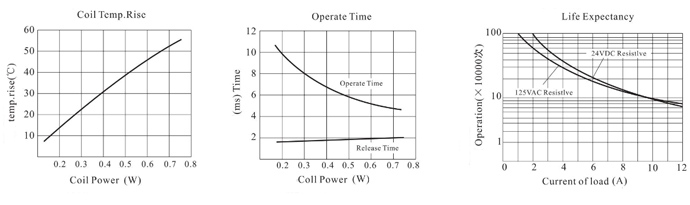

Reference Data
