 20a 12v mini pcb power relay T74 4181 relay

Features


20A carrying current

1H and 1Z contact form available construction

Standard PC layout


Contact Ratings

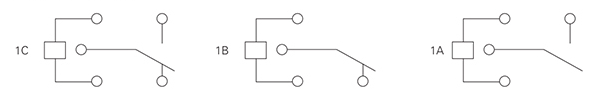

Contact Ratings 1A  1C                 2A
Contact Resistance              100MΩ (at 1A 6VDC)
Contact Material Silver Alloy
Contact Capacity 20A  14VDC / 5A  250VAC 7A  125VAC                            2*6A  14VAC

Specification


Insulation Resistance 100MΩ  500VDC
Dielectric Strength BCC  1000V  1 min
BOC  500V  1 min
Operate Time 5ms/5ms
Terminal Type PCB

Coil Ratings


Nominal Coil Power 0.6W / 0.8 W


Coil Versions


Nominal Voltage VDC Coil Resistance at 20℃ ±10%  ( Ω ) Max Operate Voltage (VDC) Min Release Voltage (VDC) Max Applicable Voltage (VDC)
0.6W 0.8W
6 60 45 3.90 0.6 9.0
9 135 100 5.85 0.9 13.5
12 240 180 7.80 1.2 18.0
24 960 720 15.6 2.4 36.0

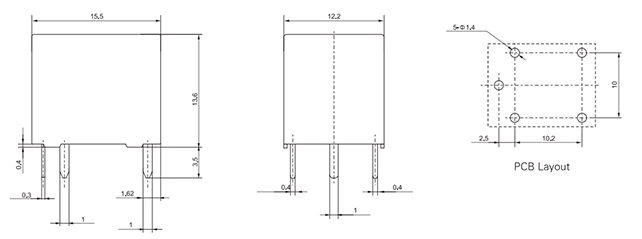

Dimension.Buttom View
