Single Phase Resistance Regulator Relay

Features :

Controled by Potentiometer

Load Current : 10~120A

Built-in RC

Excellent Linear Output

High Reliability

With LED Indicator

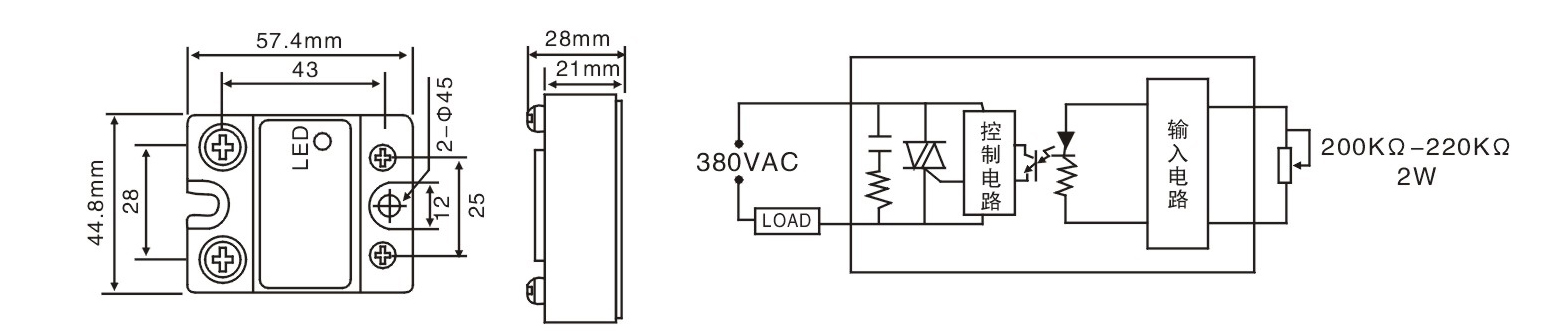

Outline & Installation Dimensions (mm) :

Specification :

Potentiometer 200KΩ~220KΩ 2W
Load Voltage 0-220VAC or 380VAC
Load Current 10A,15A,20A,25A,40A,50A,60A,80A,100A,120A
Max Off-State Leakage Current 2mA
Max On-State Voltage Drop 1.5V
L-W-H (mm) 57.4L*44.8W*28H
Weight ( Approx) 100g
Dielectric Strength ( Input , Output to base ) 2500Vrms
Operating Temperature -20℃~80℃
Certification CE
