White Shell Resistance Regulator Relay

Features :

Controled by Potentionmeter

Load Current :10~100A

Excellent Linear output

With LED Indicator

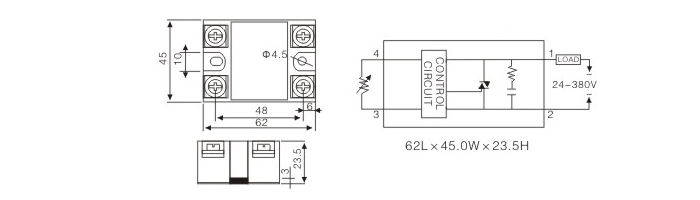

Outline & Installation Dimensions (mm)

Specification :

Load Current 10A,15A,25A,40A,50A,60A,75A,80A,100A
Load Voltage 24-380VAC / 90-480VAC
Input Control VR : 250KΩ / 110VAC        500KΩ / 220VAC
Control Current /
On Voltage ≤ 1.5VAC
Off Leakage Current ≤ 12mA
On-Off Time /
Dielectric Strength
2500VAC Input  Ouput - Heat Sink
Insulation Resistance 1000MΩ / 500VDC
Ambient Temperature
-30℃ ~ +75 ℃
Mounting Methods Bolt
The Work Instructions
Weight 140g
