| Photoelectric Sensor G76 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Advantages: 1) Compact volume, Diversified exterior 2) High precision of repeated location
3) Good performance of anti-interference 5) Dust proof, vibration proof, water proof and oil proof 6) With short-circuit protection and inverted connecting protection
Structural category:
Specification:

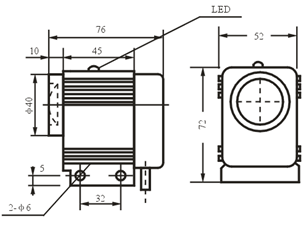

Dimension
Diffuse type
Detection distance
1m
DC
NPN
NO
G76-3A1NA
10
NC
G76-3A1NB
～
NO+NC
G76-3A1NC
30
PNP
NO
G76-3A1PA
V
NC
G76-3A1PB
NO+NC
G76-3A1PC
90～
SRC Control label silicon
NO
G76-2A1LA
250
NC
G76-2A1LB
V AC
Relay output
G76-2A1JC
Retroreflictive
Detection distance
5M
NPN
NO
G76-3B5NA
DC
NC
G76-3B5NB
10
NO+NC
G76-3B5NC
～
PNP
NO
G76-3B5PA
30
NC
G76-3B5PB
V
NO+NC
G76-3B5PC
90～
SRC Control label silicon
NO
G76-2B5LA
250
NC
G76-2B5LB
V AC
Relay output
G76-2A5JC
Trough beam
Detection distance
10m - 50m
NPN
NO
G76-3C101NA
DC
NC
G76-3C101NB
10～
NO+NC
G76-3C101NC
30
PNP
NO
G76-3C101PA
V
NC
G76-3C101PB
NO+NC
G76-3C101PC
90～
SRC Control label silicon
NO
G76-2C101LA
250
NC
G76-2C101LB
V AC
Relay output
G76-2C101JC
DC/SCR Control output
DC:200mA , AC:300mA ,relay:2A
DC/AC Consumption current
DC:<15mA , AC:<10mA
DC/AC Response time
DC:<2ms , AC:<20ms
Directional angle
3°–10°
Detected object
transparent of opaque body
Working environment temperature
–25℃～55℃
Intensity of illumination of working environment
Shell material
Plastic
Protection grade
IEC standard IP54
