| Photoelectric Sensor E3F | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Advantages: 1) Compact volume, Diversified exterior 2) High precision of repeated location
3) Good performance of anti-interference 5) Dust proof, vibration proof, water proof and oil proof 6) With short-circuit protection and inverted connecting protection
Structural category:
Specification:

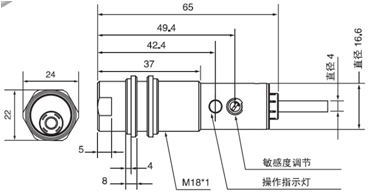

Dimension
Diffuse type
Detection distance
0-10(30)cm
DC
NPN
NO
E3F-DS10C1 / G18-3A10NA
10
NC
E3F-DS10C2 / G18-3A10NB
～
NO+NC
E3F-DS10C3 / G18-3A10NC
30
PNP
NO
E3F-DS10P1 / G18-3A10PA
V
NC
E3F-DS10P2 / G18-3A10PB
NO+NC
E3F-DS10P3 / G18-3A10PC
90～
SRC Control label silicon
NO
E3F-DS10Y1 / G18-2B10LA
250
NC
E3F-DS10Y2 / G18-2B10LB
V AC
Relay output
Retroreflictive
Detection distance
2m
NPN
NO
E3F-R2N1 / G18-3B2NA
DC
NC
E3F-R2N2 / G18-3B2NB
10
NO+NC
E3F-R2N3 / G18-3B2NC
～
PNP
NO
E3F-R2P1 / G18-3B2PA
30
NC
E3F-R2P2 / G18-3B2PB
V
NO+NC
E3F-R2P3 / G18-3B2PC
90～
SRC Control label silicon
NO
E3F-R2Y1 / G18-2B2LA
250
NC
E3F-R2Y2 / G18-2B2LB
V AC
Relay output
Trough beam
Detection distance
5m
NPN
NO
E3F-5DN1/5L / G18-3C5NA
DC
NC
E3F-5DN2/5L / G18-3C5NB
10～
NO+NC
E3F-5DN3/5L / G18-3C5NC
30
PNP
NO
E3F-5DP1/5L / G18-3C5PA
V
NC
E3F-5DP2/5L / G18-3C5PB
NO+NC
E3F-5DP3/5L / G18-3C5PC
90～
SRC Control label silicon
NO
E3F-5DY1/5L / G18-2B5LA
250
NC
E3F-5DY2/5L / G18-2B5LB
V AC
Relay output
DC/SCR Control output
DC:200mA , AC:300mA
DC/AC Consumption current
DC:<15mA , AC:<10mA
DC/AC Response time
DC:<2ms , AC:<20ms
Directional angle
3°–10°
Detected object
transparent of opaque body
Working environment temperature
–25℃～55℃
Intensity of illumination of working environment
Shell material
Plastic
Protection grade
IEC standard IP66
Output return diagram of photoelectric switch:

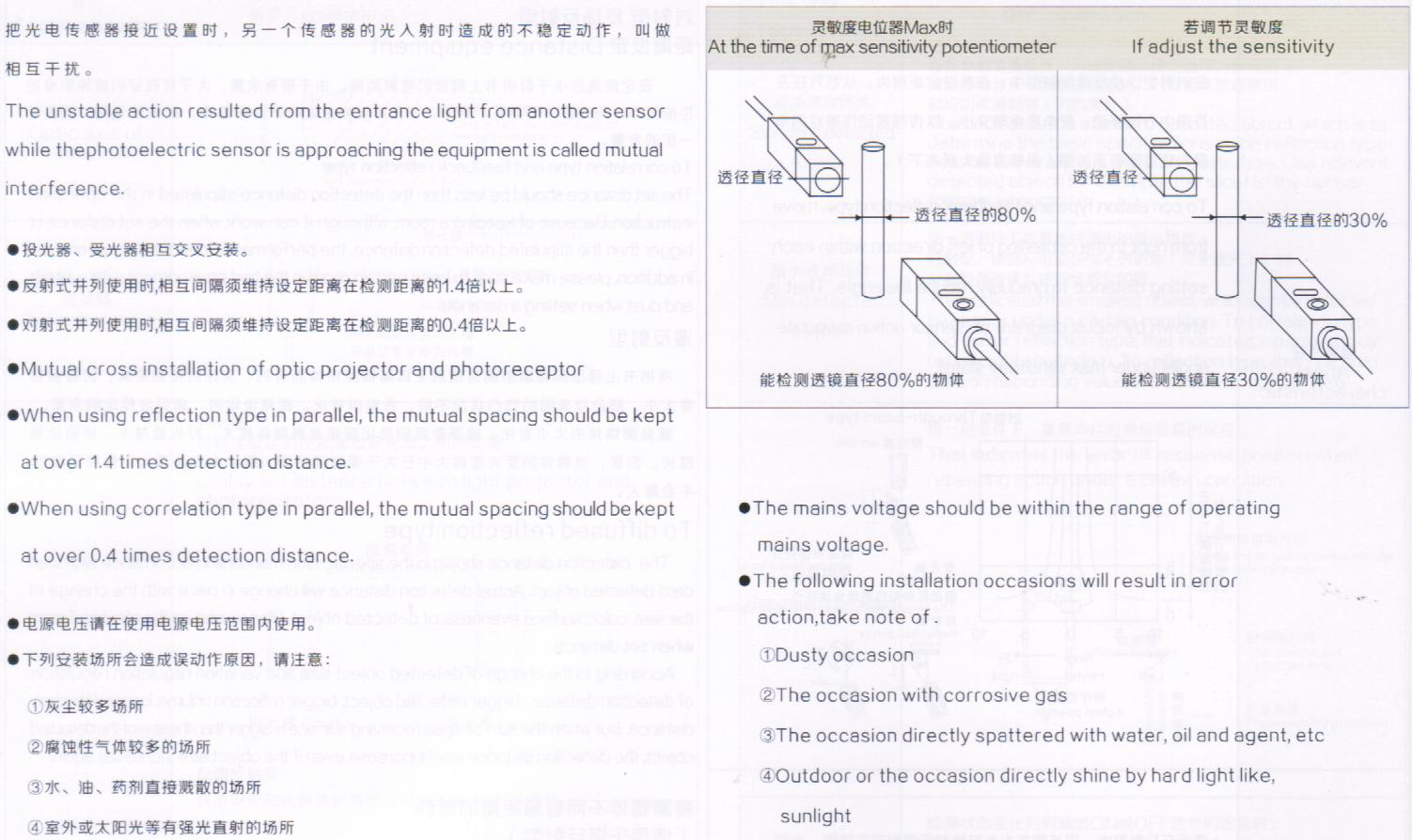

Method of anti mutual-interference and caution:

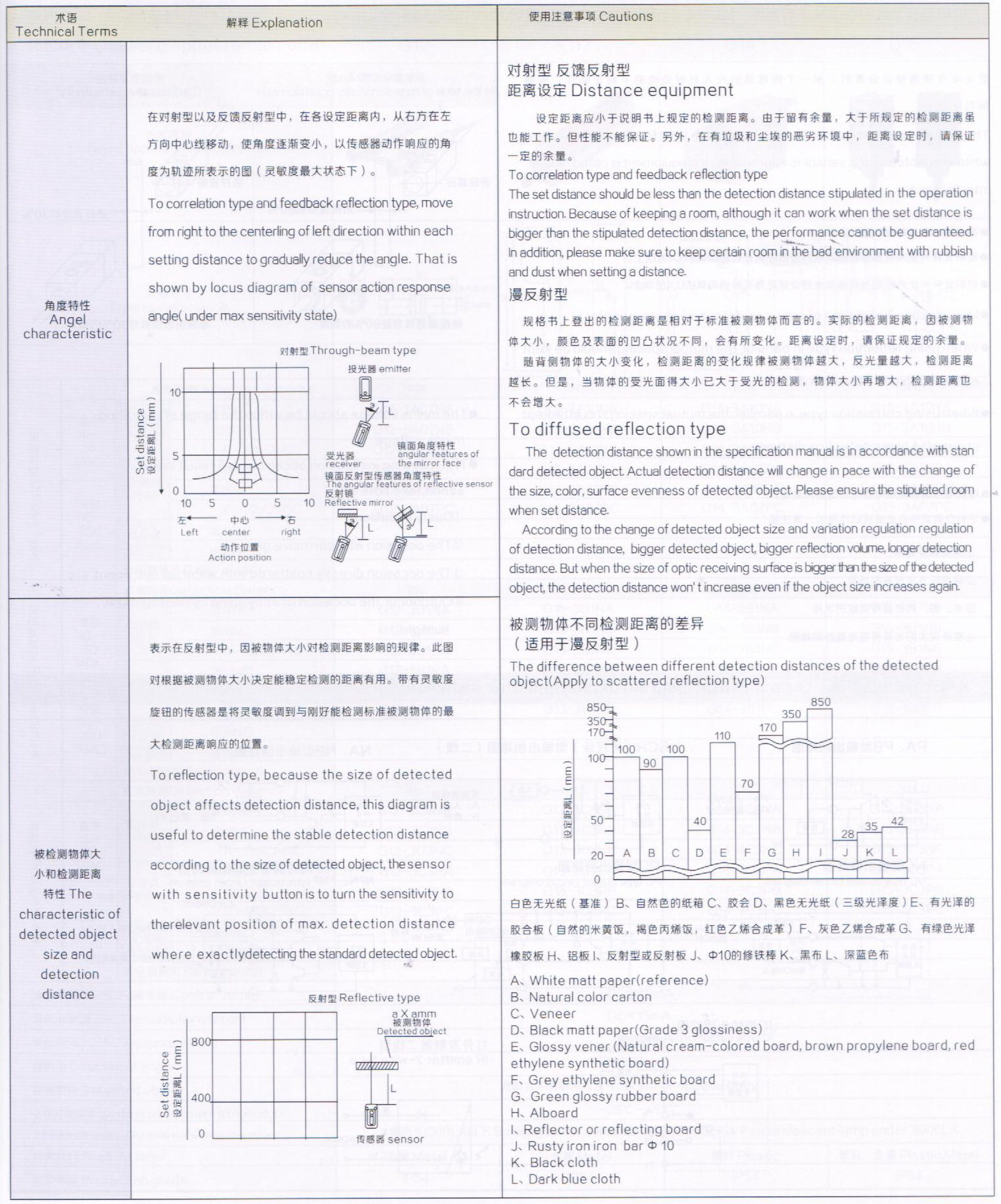

Explanation of technical terms of photoelectric switch:

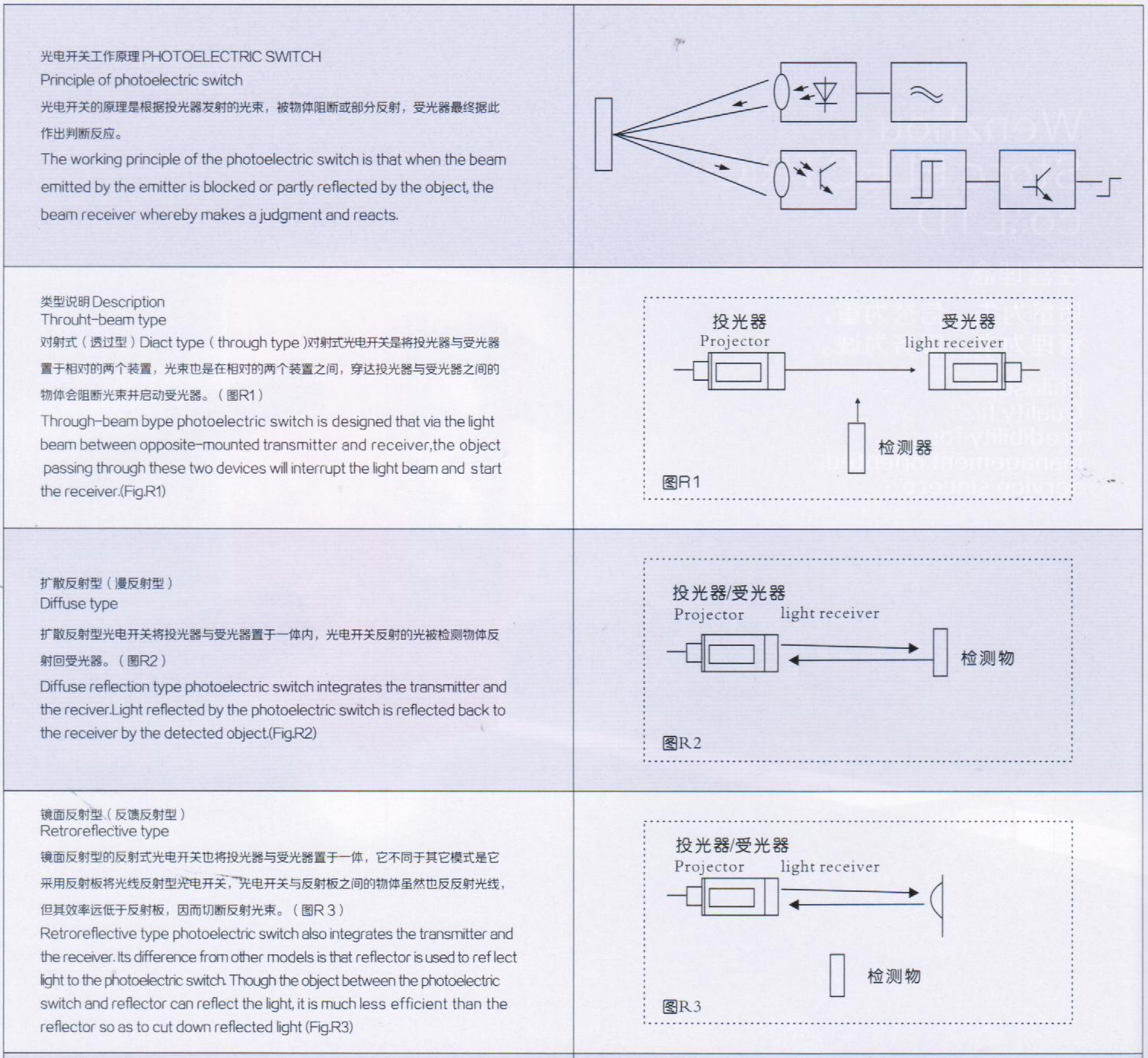

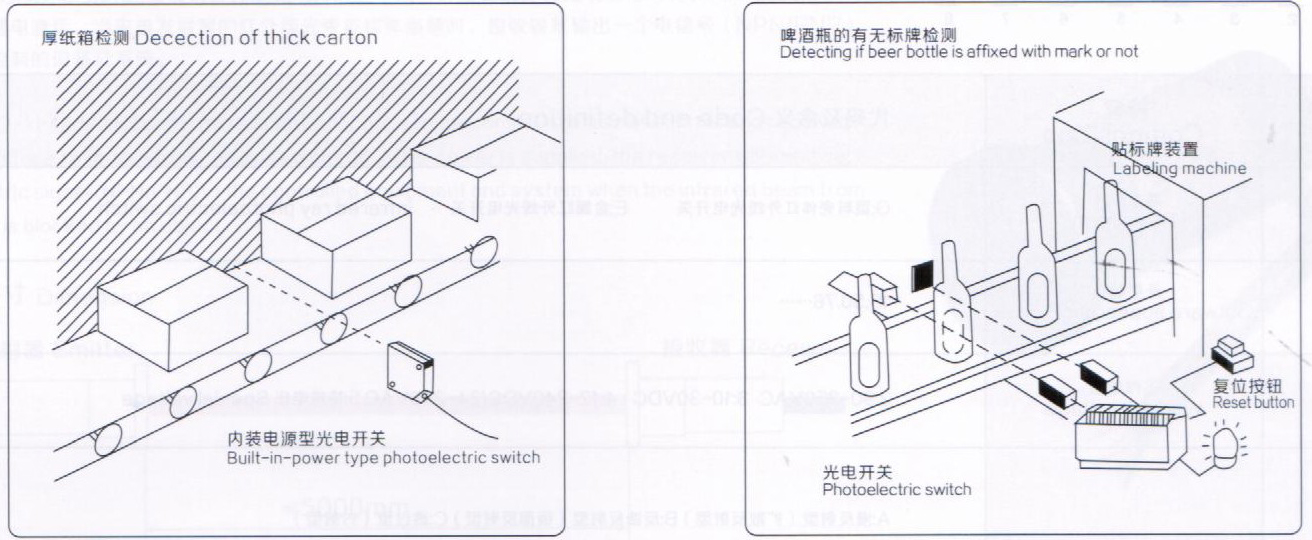

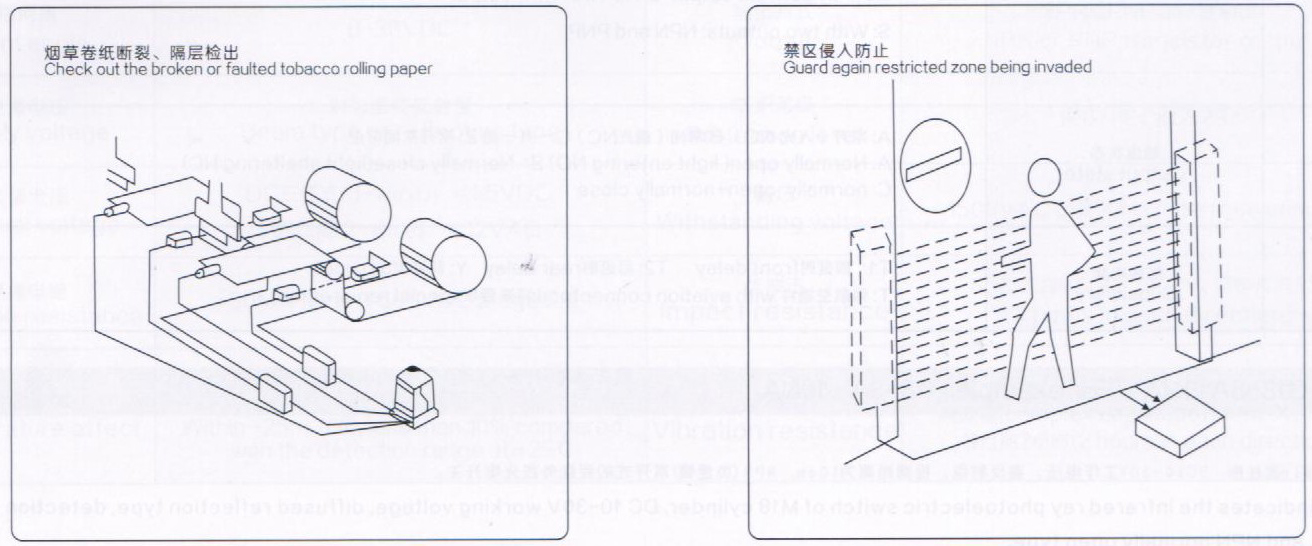

Application illustration of proximity switch:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
