 MY2NJ relay 220V AC coil general purpose DPDT micro mini relay with socket base

The HH52,53 and 54 are a series of miniature general purpose relays. specially designed of users demanding small size, sturdy construction and high electrical capacity. Mechanisms are furnished in polycarbonate dust-proof enclosures and are recommended for a multitude of electrical control applications for their reliability and compact size. Contiunous duty coils. either AC or DC are available for voltages up to 240VAC or 120VDC. Contacts can be supplied in 2PDT, 3PDT,4PDT arrangements. Continuous current rating are 3, 5 and 7 Amps, Many terminal types are available for solder, plug-in or printed circuit board mounting.


Features


  • Various relays, including LED, test button and high capacity;
  • With 2Z,3Z,4Z contact forms;
  • With various terminal types;
  • Gilt contact types;
  • Transparent dusty-proof cover, various mounting types;
  • Various socket available


Contact Ratings


Contact Ratings 2Z  2H  2D 3Z  3H  3D 4Z  4H  4D
Contact Resistance 50mΩ (at 1A 16VDC)
Contact Material Sliver Alloy
Contact Capacity 5A / 250VAC  28VDC 5A / 250VAC     28VDC

Specification


Insulation Resistance 500MΩ 500VDC
Dielectric Strength BCC  1500V  1min
BOC  1000V  1min
COC  1500V  1min
Operate Time 20ms/15ms
Terminal Type Socket

Coil Ratings


Nominal Coil Power 0.9W / 0~1.3VA


Coil Versions


Nominal Voltage VDC Pull-in Voltage VDC Release Voltage VDC Coil Resistance Ω :± 10%
5 4.8 0.50 30
6 4.8 0.60 40
12 9.6 1.20 160
24 19.2 2.40 640
48 38.4 4.80 2560
110 88.0 11.0 12100

Nominal Voltage VAC Pull-in Voltage VAC Release Voltage VAC Coil Resistance Ω :± 10%
6 4.80 1.80 12
12 9.60 3.60 42
24 19.2 7.20 168
48 38.4 14.4 675
110 96.0 36.0 3500
220/240 176.0 72.0 14000

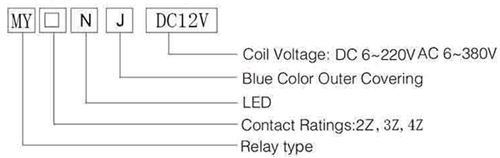

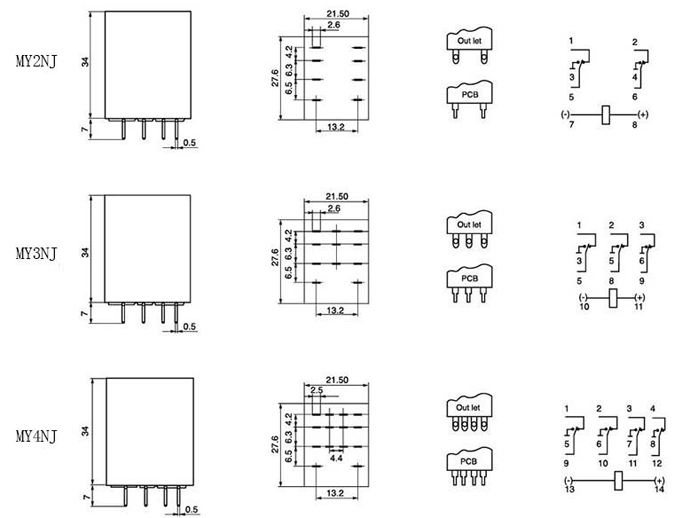

Dimension . Buttom View

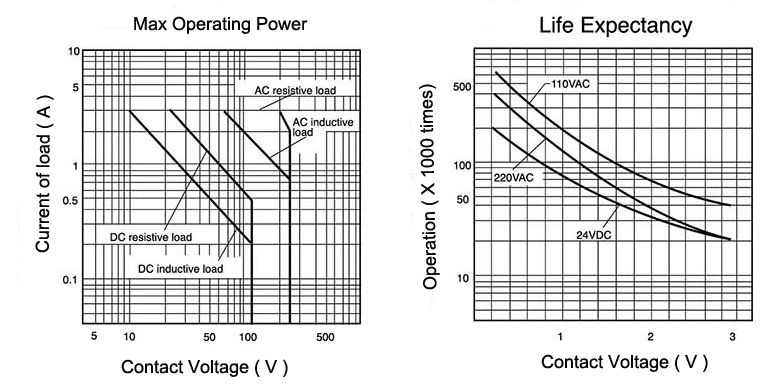

Reference Data
