Features
-
10A Contact operating capacity
-
Mechanical life ≥ 100000
-
With 2Z,3Z contact forms
-
Standard tube terminal
-
With matched socket
Contact Ratings
|
Contact Ratings
|
2P
|
3P
|
|
Contact Resistance
|
50mΩ （at 1A 16VDC）
|
|
Contact Material
|
AgCdo
|
|
Contact Capacity
|
10A
|
10A
|
|
28VDC/250VAC
|
28VDC/250VAC
|
Specification
|
Insulation Resistance
|
≥ 500MΩ 500VDC
|
|
Dielectric Strength
|
BCC 1500VAC 1min
|
|
BOC 1000V 1min
|
|
Operate Time
|
20ms/20ms
|
Terminal Type
|
Socket
|
Coil Ratings
|
Nominal Coil Power
|
0.9W / 1.2VA
|
Coil Versions
|
Nominal Voltage VDC
|
Pull-in Voltage VDC
|
Release Voltage VDC
|
Coil Resistance Ω ：± 10%
|
|
6
|
4.8
|
0.60
|
22.5
|
|
12
|
9.6
|
1.20
|
50.6
|
|
24
|
19.2
|
2.40
|
90
|
|
48
|
38.4
|
4.80
|
810
|
|
100
|
80.0
|
10.0
|
7550
|
|
110
|
88.0
|
11.0
|
9000
|
|
Nominal Voltage VAC
|
Pull-in Voltage VAC
|
Release Voltage VAC
|
Coil Resistance Ω ：± 10%
|
|
6
|
4.80
|
1.80
|
4.5
|
|
12
|
9.60
|
3.60
|
18
|
|
24
|
19.2
|
7.20
|
72
|
|
48
|
38.4
|
14.4
|
288
|
|
110/120
|
88.0
|
36.0
|
1512
|
|
220/240
|
176
|
72.0
|
6050/7200
|

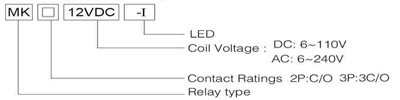

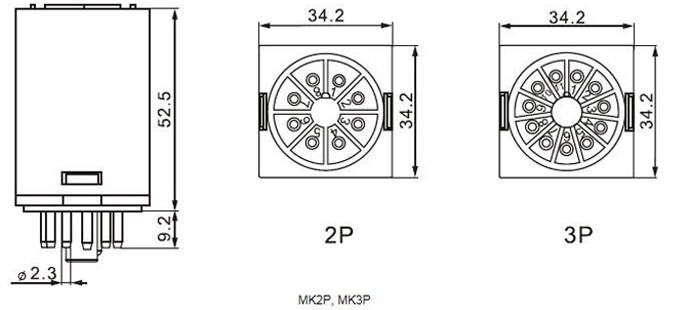

Overall Dimensions

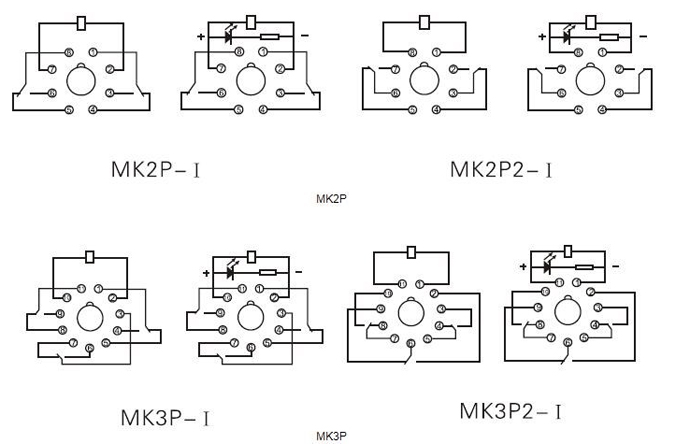

Wiring Diagram

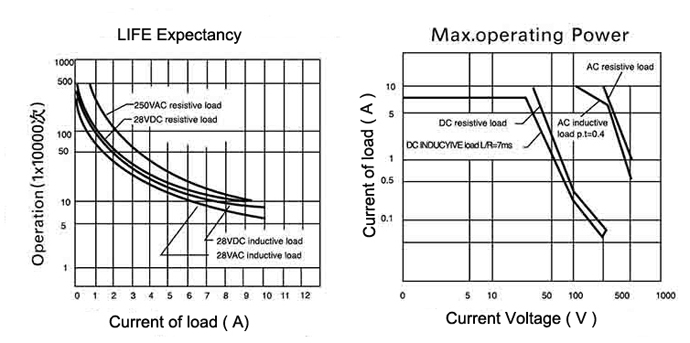

Reference Data
|
