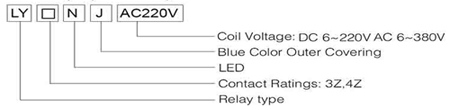

LY Series general relay is widely suitable for DC or AC circuit switching in various automation devices, process control and communcation equipment etc, It's characteristic of stable performance, high reliability,capable of making and breaking relatively large load current , easy in maintenance and inspection as well as long service life, the plug-in base of the relay is suitable for use with standard 8 and 11 pins socket,The cover the rated current from 3A to 15A.
Features
-
Awide range of relay versions, test button available.
-
10A Carrying Current
-
Matched Sakets Available
Contact Ratings
|
Contact Ratings
|
3Z 3H 3D
|
|
Contact Resistance
|
50mΩ ( 10A 6VDC )
|
|
Contact Material
|
Sliver Alloy
|
|
Contact Capacity
|
10A / 250VAC 28VDC
|
Specification
|
Insulation Resistance
|
500MΩ 500VDC
|
|
Dielectric Strength
|
BCC 1500V 1min
|
|
BOC 1000V 1min
|
|
COC 1500V 1min
|
|
Operate Time
|
25ms/15ms
|
|
Terminal Type
|
Socket
|
Coil Ratings
|
Norminal Coil Power
|
0.9W /1.0~-1.3VA
|
Coil Versions
|
Nominal Voltage VDC
|
Pull-in Voltage VDC
|
Release Voltage VDC
|
Coil Resistance Ω ：± 10%
|
|
5
|
4.8
|
0.50
|
30
|
|
6
|
4.8
|
0.60
|
40
|
|
12
|
9.6
|
1.20
|
160
|
|
24
|
19.2
|
2.40
|
640
|
|
48
|
38.4
|
4.80
|
2560
|
|
110
|
88.0
|
11.0
|
12100
|
|
Nominal Voltage VAC
|
Pull-in Voltage VAC
|
Release Voltage VAC
|
Coil Resistance Ω ：± 10%
|
|
6
|
4.80
|
1.80
|
12
|
|
12
|
9.60
|
3.60
|
42
|
|
24
|
19.2
|
7.20
|
168
|
|
48
|
38.4
|
14.4
|
675
|
|
110
|
96.0
|
36.0
|
3500
|
|
220/240
|
176.0
|
66.0
|
14000/ 16500
|

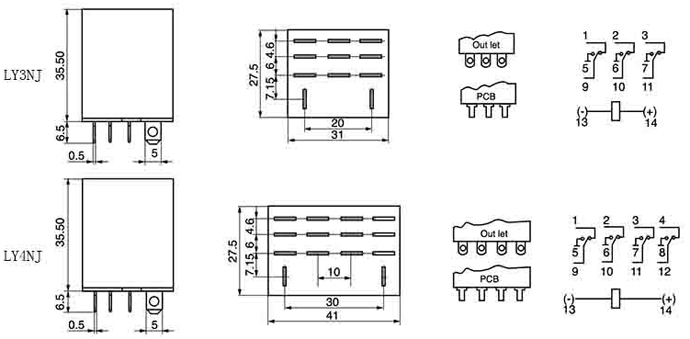

Wiring Diagram & Buttom View
Reference Data
|
