 LY2NJ general purpose relay 8 pins pcb relay

LY Series general relay is widely suitable for DC or AC circuit switching in various automation devices, process control and communcation equipment etc, It's characteristic of stable performance, high reliability,capable of making and breaking relatively large load current , easy in maintenance and inspection as well as long service life, the plug-in base of the relay is suitable for use with standard 8 and 11 pins socket,The cover the rated current from 3A to 15A.



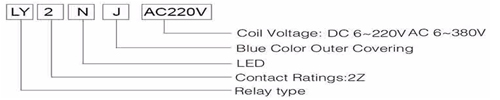

Features

  • Awide range of relay versions, test button available.
  • 10A Carrying Current
  • Matched Sakets Available

Contact Ratings


Contact Ratings 2Z  2H  2D
Contact Resistance ≤50mΩ ( 10A 6VDC )
Contact Material Sliver Alloy
Contact Capacity 10A / 250VAC  28VDC

Specification


Insulation Resistance ≥500MΩ   500VDC
Dielectric Strength BCC  1500V  1min
BOC  1000V  1min
COC  1500V  1min
Operate Time 20ms/15ms
Terminal Type Socket

Coil Versions


Nominal Voltage VDC Pull-in Voltage VDC Release Voltage VDC Coil Resistance Ω :± 10%
5 4.0 0.50 30
6 4.8 0.60 40
12 9.6 1.20 160
24 19.2 2.40 640
48 38.4 4.80 2560
110 88.0 11.0 12100
Nominal Voltage VAC Pull-in Voltage VAC Release Voltage VAC Coil Resistance Ω :± 10%
6 4.80 1.80 12
12 9.60 3.60 42
24 19.2 7.20 168
48 38.4 14.4 675
110 96.0 36.0 3500
220/240 176.0 66.0 14000/ 16500

Wiring Diagram & Buttom View

Reference Data
