Features
Ultra-small volume
Low power consumption
Large load contact
High seneitivity
Coil Parameters
|
Coil Power
|
DC : 0.45W
|
|
Coil Specifications
|
|
|
|
|
Rate Voltage (VDC)
|
Operate Voltage (VDC)
|
Release Voltage (VDC)
|
Coil Resistance ( Ω±10% ）
|
|
5
|
≤ 3.75
|
≥0.5
|
56
|
|
6
|
≤ 4.5
|
≥0.6
|
80
|
|
9
|
≤ 6.75
|
≥0.9
|
180
|
|
12
|
≤ 9.0
|
≥1.2
|
320
|
|
15
|
≤ 11.25
|
≥1.5
|
500
|
|
18
|
≤ 13.5
|
≥1.8
|
720
|
|
24
|
≤ 18.0
|
≥2.4
|
1280
|
|
48
|
≤ 36.0
|
≥4.8
|
5120
|
Contact Parameters
|
Contact Type
|
1H
|
1Z
|
|
Contact Material
|
AgCdO, AgSnO
|
|
Contact Resistance
|
≤ 100mΩ
|
|
Contact Load
|
10A
|
5A
|
|
Max Switching Voltage
|
250VAC / 30VDC
|
|
Lif Expectance Electrical
|
1*100000
|
|
Mechanical Life
|
1*10000000
|
Environmental Parameters
|
Temperature
|
-40℃~+85℃
|
|
Humidity
|
35%~85% RH
|
|
Atmospheric Pressure
|
86-106kPa
|
|
Installation Type
|
PCB
|
Packing Parameters
|
Number Of Boxes
|
100pcs/Box
|
|
Carton Quantity
|
1000pcs/Box
|
|
Packing Size
|
184mm*204mm*77mm
|
|
Weight
|
6g/pcs GW : 6.5KG/Box
|

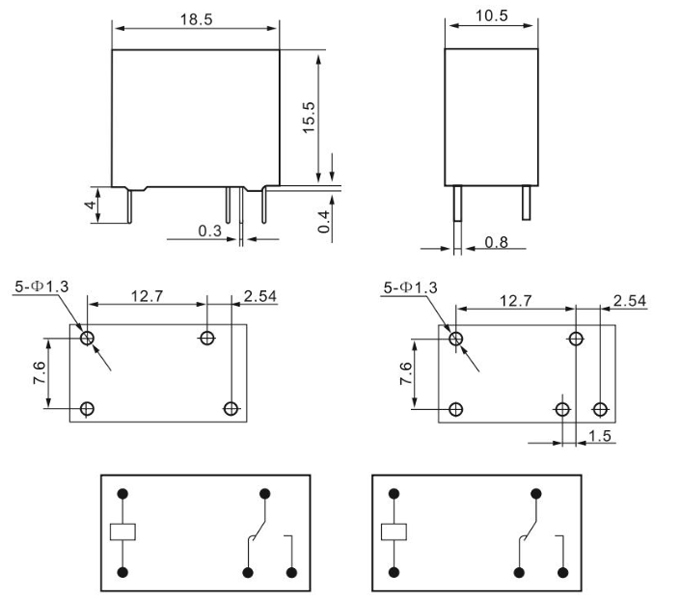

Dimension.Buttom View

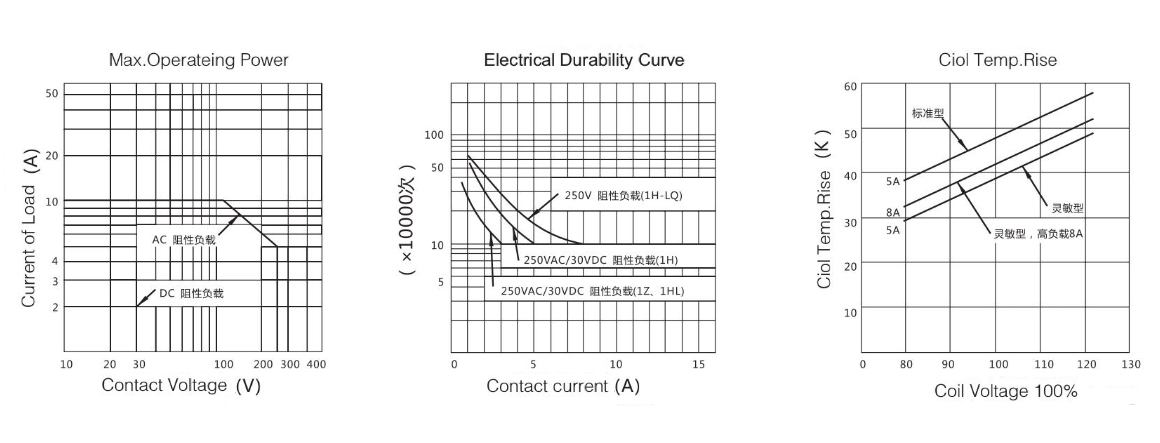

Reference Data
|
