 JZC-23F Electromagnetic Relay Miniature Relay 10a

Features


10A Carrying Current

1H and 1Z contact form available construction

Standard PC layout


Contact Ratings


Contact Ratings 1A  1B  1C
Contact Resistance 100MΩ (at 1A 6VDC)
Contact Material Silver Alloy
Contact Capacity 10A  250VAC /28VDC

Specification


Insulation Resistance 100MΩ  500VDC
Dielectric Strength BCC  1500V  1 min
BOC  750V   1 min
Operate Time 10ms/5ms
Terminal Type PCB

Coil Ratings


Nominal Coil Power 0.36W / 0.45W


Coil Versions


Nominal Voltage VDC Coil Resistance at 20℃ ±10%  ( Ω ) Max Operate Voltage (VDC) Min Release Voltage (VDC) Max Applicable Voltage (VDC)
0.36W 0.45W
3 25 20 2.25 0.3 3.9
5 70 55 3.75 0.5 6.5
6 100 80 4.50 0.6 7.8
9 225 180 6.75 0.9 11.7
12 400 320 9.00 1.2 15.6
24 1600 1280 18.00 2.4 31.2
48 6400 5100 36.00 4.8 62.4

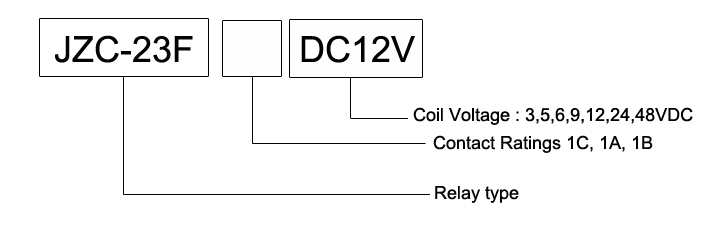

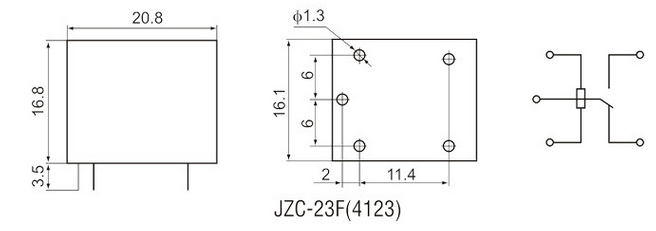

Dimension.Buttom View
