JZC-22F 5 pin pcb relay 15a electromagnetic relay 12 volts

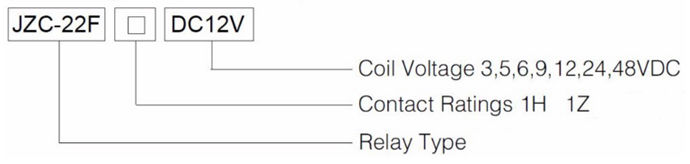

Features

10A,15A Carrying Current

SPST-NO & SPDT configurations

Standard PC layout

Contact Ratings

Contact Ratings	1H		1C
Contact Resistance	100MΩ （ 1A 6VDC ）
Contact Material	Silver Alloy
Contact Capacity	12A 240VAC		10A 240VAC
	15A 120VAC / 24VDC	12A 120VAC/ 24VDC

Specification

Insulation Resistance	100MΩ 500VDC
Dielectric Strength	BCC 5000V 1 min
Dielectric Strength	BOC 750V 1 min
Operate Time	10ms/15ms
Terminal Type	PCB

Coil Ratings

Nominal Coil Power

0.36W, 0.45W

Coil Versions

Nominal Voltage VDC	Coil Resistance at 20℃ ±10% ( Ω ）		Max Operate Voltage (VDC)	Min Release Voltage (VDC)	Max Applicable Voltage (VDC)
Nominal Voltage VDC	0.36W	0.45W	Max Operate Voltage (VDC)	Min Release Voltage (VDC)	Max Applicable Voltage (VDC)
3	25	20	2.25	0.3	3.9
5	70	55	3.75	0.5	6.5
6	100	80	4.50	0.6	7.8
9	220	180	6.75	0.9	11.7
12	400	320	9.00	1.2	15.6
24	1600	1280	18.00	2.4	31.2
48	6400	5100	36.00	4.8	62.4

Dimension.Buttom View

Reference Data
