 Digital time relay JSS20-48AMS electronical time timing relay

JSS20-48AMS digital timer switch introduce aboard technology, supply advanced great-scale special C and LED, According to aboard technology standard , can replace H5CN of OMRON,The product have beautiful,it's widely used in industry auto control circuit.

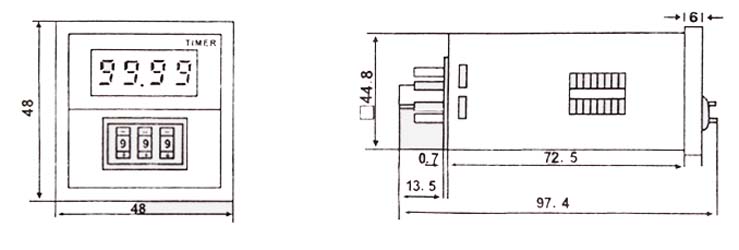

Dimensions (mm)

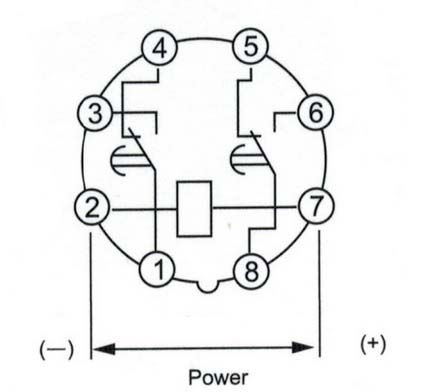

Wiring Diagram

Main Features :

             Model Number        JSS20-48AMS
Working Voltage AC24V、36V、110V、220V、380V、DC12V、24V
Work Mode                                                                   Conduction delay
Time Range            0.01s~9.99s  0.1s~99.9s  1s~999s  0.1m~99.9m  1m~999m  0.1h~99.9h  1h~999h
Contact Form                                             SPDT (2C)
Contact capacity 3A 220VAC (Resistance )
Outline Dimensions 48*48*97.4
Installation Dimensions 45*45
Installation Mode Panel
