JS14C Digital Display Min Time Delay Relay 220V

The JS14C number reveals the time relay is used the advanced center scale special-purpose integrated circuit, the LED numerical code tube demonstrated that , the contour artistic , the installment convenient, digital pressed key switch initialization, stable reliable , the precision high, the time delay scope width, the power loss are low and so on the merit, widely applies in the automatic control line makes the time-delay service.

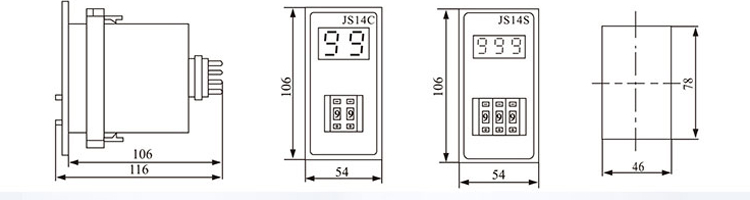

Dimensions (mm)

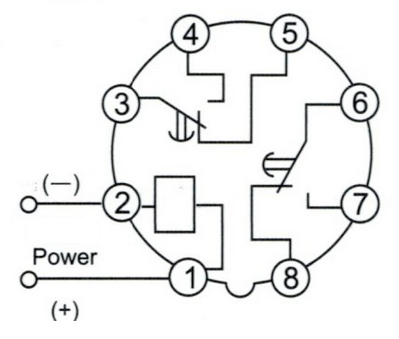

Wiring Diagram :

Main Features:

Model Number JS14C
Working Voltage AC24V、36V、110V、220V、380V、DC12V、24V
Work Mode Conduction Delay
Time Range 0.1s~99h  0.01s~999h  0.01s~9999h
Contact Form 2 set delay
Contact capacity 5A 220VAC (Resistance )
Outline Dimensions 84*47*112
Installation Dimensions 78*46
Installation Mode Front Panel
