 JS11S digital display time relay / digital counter / electronic counter

JS11S digital number display time relay medium -scale integrated circuits, LED digital display, digital keypad switches preset , with stable and reliable , high precision , delay range, low power consumption. beautiful apperance, easy installation,etc, are widely used in automatic control circuit as a delay element.

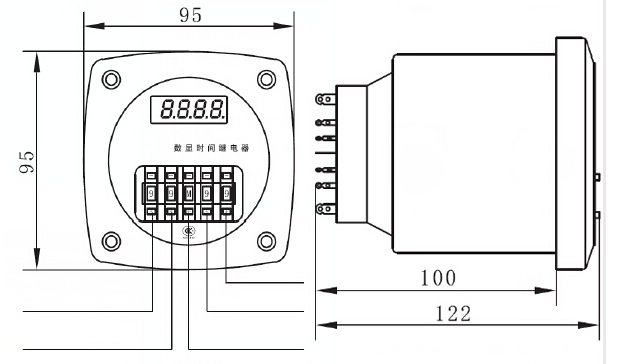

Dimensions (mm)

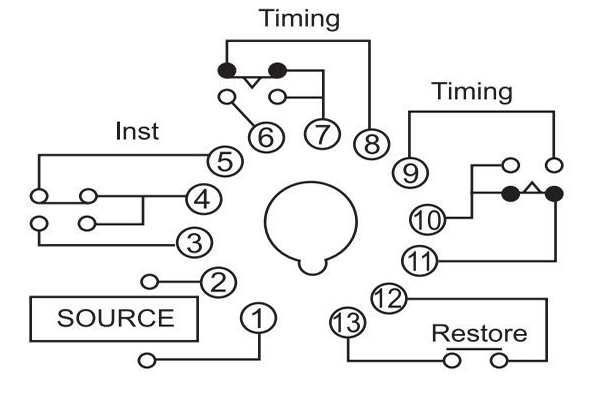

Wiring Diagram

Main Features :

                       Model Number                      JS11S
Working Voltage AC24V、36V、110V、220V、380V、DC12V、24V
Work Mode Conduction Delay
Time Range 0.1s~99h  0.01s~999h  0.01s~9999h
Contact Form 1 set of temporal, 2 and group delay reset
Contact Capacity 5A 220VAC ( Resistance )
Outline Dimensions 95*95*122
Installation Dimensions 70*70
Installation Mode Front Panel
