Features
2A Carrying Current
Gilt contact type
Subminiature Plastic package
DIP standard terminals Au-clad contacts
Contact Ratings
|
Contact Ratings
|
1C
|
|
Contact Resistance
|
100MΩ （at 1A 6VDC）
|
|
Contact Material
|
Silver Alloy
|
|
Contact Capacity
|
2A 120VAC / 24VDC
|
Specification
|
Insulation Resistance
|
100MΩ 500VDC
|
|
Dielectric Strength
|
BCC 1000V 1 min
|
|
BOC 400V 1 min
|
|
Operate Time
|
5ms/5ms
|
|
Terminal Type
|
PCB
|
Coil Ratings
|
Nominal Coil Power
|
0.15W, 0.2W, 0.36W
|
Coil Versions
|
Nominal Voltage VDC
|
Coil Resistance at 20℃ ±10% ( Ω ）
|
Max Operate Voltage (VDC)
|
Min Release Voltage (VDC)
|
Max Applicable Voltage (VDC)
|
|
0.15W
|
0.2W
|
0.36W
|
|
3
|
60
|
45
|
25
|
2.25
|
2.25
|
3.9
|
|
5
|
167
|
120
|
70
|
3.75
|
3.75
|
6.5
|
|
6
|
240
|
180
|
100
|
4.50
|
4.50
|
7.8
|
|
9
|
540
|
400
|
220
|
6.75
|
6.75
|
11.7
|
|
12
|
960
|
720
|
400
|
9.00
|
9.00
|
15.6
|
|
24
|
3840
|
2880
|
1600
|
18.00
|
18.00
|
31.2
|

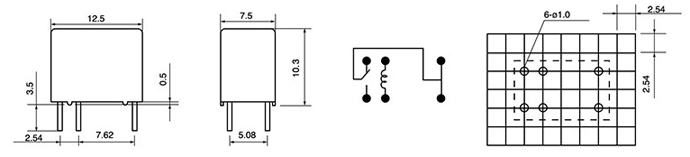

Dimension.Buttom View

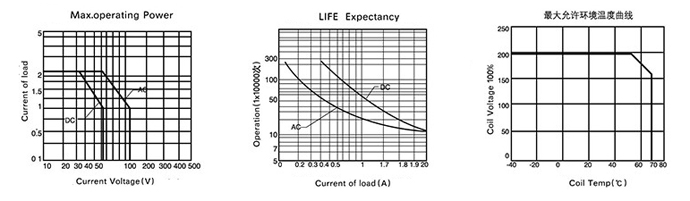

Reference Data
|
