 JRC-21F Power PCB Relay small relay 24v electromagnetic relays

Features


1A,3A Carrying current

Subminiature

DIP standard terminals Au-clad

Contacts


Contact Ratings


Contact Ratings 1A  1B  1C
Contact Resistance 50MΩ (at 1A 6VDC)
Contact Material Silver Alloy
Contact Capacity 3A   250VAC / 3A  30VDC

Specification


Insulation Resistance 100MΩ  500VDC
Dielectric Strength BCC  1000V  1 min
BOC  500V  1 min
Operate Time 5ms/15ms
Terminal Type PCB

Coil Ratings


Nominal Coil Power 0.15W, 0.2W, 0.36W


Coil Versions


Nominal Voltage VDC Coil Resistance at 20℃ ±10% ( Ω ) Max Operate Voltage (VDC) Min Release Voltage (VDC) Max Applicable Voltage (VDC)
0.15W 0.2W 0.36W
3 60 45 25 2.25 0.3 3.9
5 167 120 70 3.75 0.5 6.5
6 240 180 100 4.50 0.6 7.8
9 540 400 220 6.75 0.9 11.7
12 960 720 400 9.00 1.2 15.6
24 3840 2880 1600 18.00 2.4 31.2

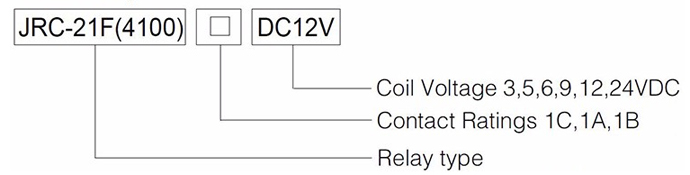

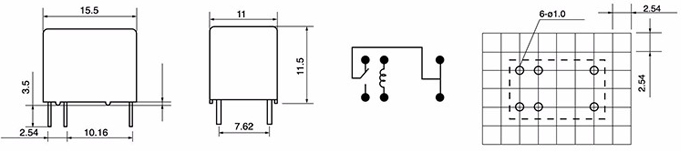

Dimension.Buttom View

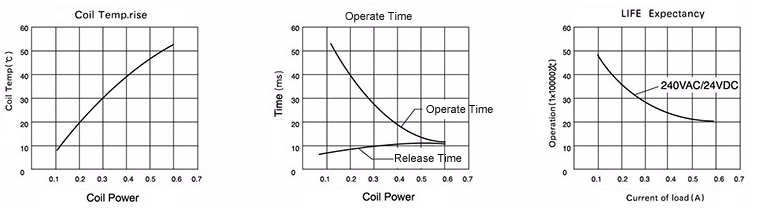

Reference Data
