 JRC-19F 8pin pcb relay/ power relay/electric relay

Features

2 Form C (DPD) bifurcated crossbar contacts

Dip-2c type matching 16 pin lc socket


Contact Ratings


Contact Ratings 2A  2Z
Contact Resistance 50MΩ (at 1A 6VDC)
Contact Material Silver Alloy
Contact Capacity 1A  125VAC / 2A  30VDC

Specification


Insulation Resistance 100MΩ  500VDC
Dielectric Strength BCC  1000V  1 min
BOC  600V   1 min
Operate Time 6ms/4ms
Terminal Type PCB

Coil Ratings


Nominal Coil Power 0.15W,0.2W,0.36W,0.45W


Coil Versions


Nominal Voltage VDC Coil Resistance at 20℃ ± 10% (Ω)
Max Operate Voltage (VDC) Min Release Voltage (VDC) Max Applicable Voltage (VDC)
0.15W 0.2W 0.36W 0.45W
3 60 45 25 20 2.25 0.3 3.9
5 167 120 70 56 3.75 0.5 6.5
6 240 180 100 80 4.50 0.6 7.8
9 540 400 220 180 6.75 0.9 11.7
12 960 720 400 320 9.00 1.2 15.6
24 3840 2880 1600 1250 18.00 2.4 31.2

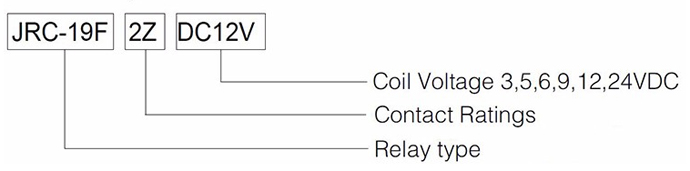

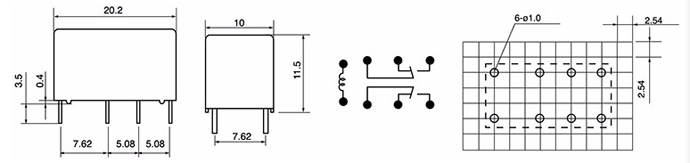

Dimension.Buttom View

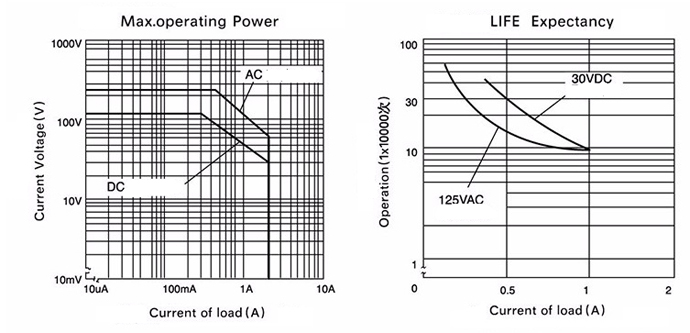

Reference Data
