 JQX-62F-1Z Electromagnetic relay power relay 12v 24v 220v

Features


80A Contact Change-over Capacity

With Opening and Dust-proof Type


Contact Ratings


Contact Ratings 1Z  1H  1D
Contact Resistance 100MΩ (1A 6VDC)
Contact Material AgCdO
Contact Capacity 100A  120A 250VAC

Specification


Insulation Resistance 1000MΩ   500VDC
Dielectric Strength BCC  2500V  1 min
BOC  1200V  1 min
Operate Time 25ms/25ms
Terminal Type Terminal Mounting

Coil Ratings


Nominal Coil Power                          DC : 2.0W   AC  2.5VA

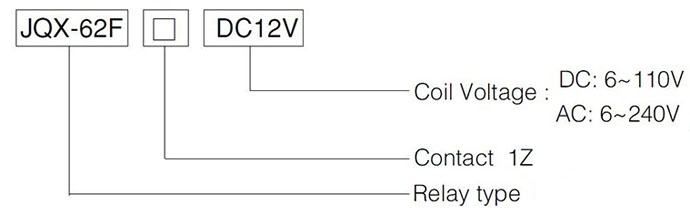

Coil Versions


Nominal Voltage VDC Pull-in Voltage VDC Release Voltage VDC Coil Resistance Ω :± 10%
6 4.80 0.60 18
12 9.60 1.20 70
24 19.2 2.40 290
48 38.4 4.80 1152
60 48.0 6.00 2800
110 88.0 11.0 9650
Nominal Voltage VAC Pull-in Voltage VAC Release Voltage VAC Coil Resistance Ω :± 10%
6 4.80 1.80 9
12 9.60 3.60 36
24 19.20 7.20 144
48 38.40 14.4 576
110 88.00 36.0 3500
220/240 176.00 72.0 12000/14400

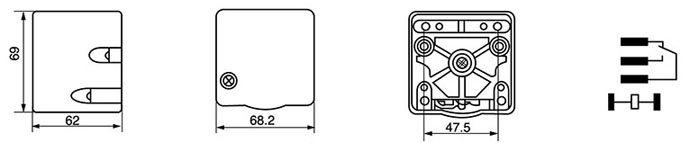

Dimension.Buttom View

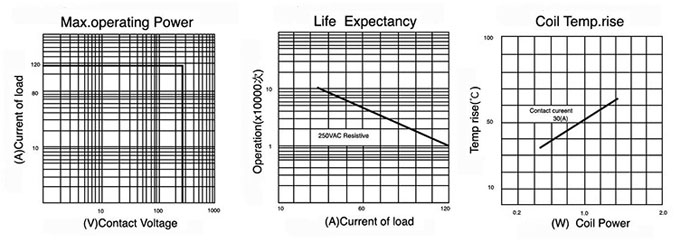

Reference Data
