Features
60A Contact Change-over Capacity
Swift Connection
With Opening and dust-proof Type
Contact Ratings
|
Contact Ratings
|
1Z 1H 1D
|
|
Contact Resistance
|
100mΩ (1A 6VDC）
|
|
Contact Material
|
AgCdO
|
|
Contact Capacity
|
60A 70A 80A 250VAC /30VDC
|
Specification
|
Insulation Resistance
|
1000MΩ 500VDC
|
|
Dielectric Strength
|
BCC 2500V 1 min
|
|
BOC 1200V 1 min
|
|
Operate Time
|
25ms/25ms
|
|
Terminal Type
|
Screw
|
Coil Ratings
|
Nominal Coil Power
|
DC : 2.0W AC 2.5VA
|
Coil Versions
|
Nominal Voltage VDC
|
Pull-in Voltage VDC
|
Release Voltage VDC
|
Coil Resistance Ω ：± 10%
|
|
6
|
4.80
|
0.60
|
20
|
|
12
|
9.60
|
1.20
|
45
|
|
24
|
19.2
|
2.40
|
320
|
|
48
|
38.4
|
4.80
|
1280
|
|
60
|
48.0
|
6.00
|
2800
|
|
110
|
88.0
|
11.0
|
9650
|
|
Nominal Voltage VAC
|
Pull-in Voltage VAC
|
Release Voltage VAC
|
Coil Resistance Ω ：± 10%
|
|
6
|
4.80
|
1.80
|
14.4
|
|
12
|
9.60
|
3.60
|
57
|
|
24
|
19.20
|
7.20
|
250
|
|
48
|
38.40
|
14.40
|
921
|
|
110
|
88.00
|
36.00
|
5000
|
|
220/240
|
176.00
|
72.00
|
19600/25040
|

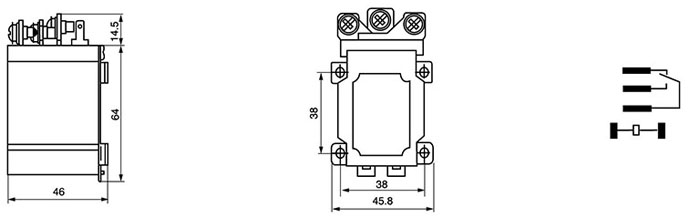

Dimension.Buttom View

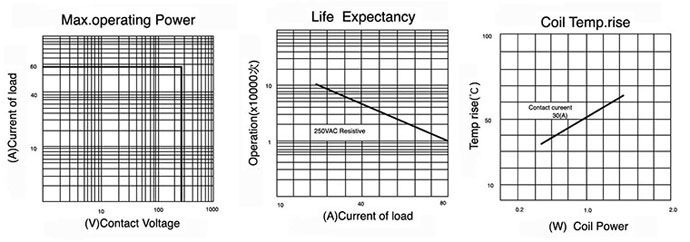

Reference Data
|
