 High-Power Electric Relay Jqx60F 2Z 100A Power Relay

Features


100A Contact Change-over Capacity

With Opening and dust-proof Type


Contact Ratings


Contact Ratings 2Z,2H,2D
Contact Resistance 100MΩ (1A 6VDC)
Contact Material AgCdO
Contact Capacity 100A  250VAC /30VDC

Specification


Insulation Resistance 1000MΩ  500VDC
Dielectric Strength BCC  2500V  1 min
BOC  1200V  1 min
Operate Time 25ms/25ms
Terminal Type Screw

Coil Ratings


Nominal Coil Power DC : 3.6W  AC  4.4VA


Coil Versions


Nominal Voltage VDC Pull-in Voltage VDC Release Voltage VDC Coil Resistance Ω :± 10%
6 4.80 0.60 10
12 9.60 1.20 40
24 19.2 2.40 160
48 38.4 4.80 640
60 48.0 6.00 2800
110 88.0 11.0 9650
Nominal Voltage VAC Pull-in Voltage VAC Release Voltage VAC Coil Resistance Ω :± 10%
6 4.80 1.80 8.27
12 9.60 3.60 32.7
24 19.20 7.20 130
48 38.40 14.4 523.6
110 88.00 36.0 2750
220/240 176.0 72.0 11000/13090

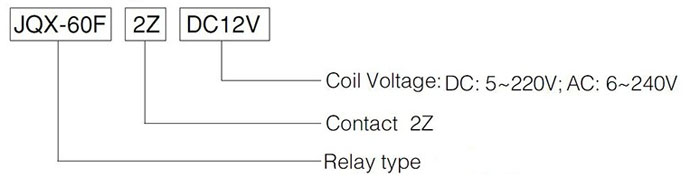

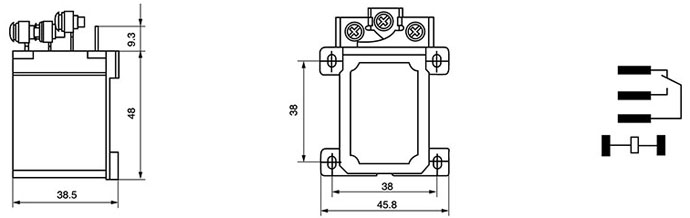

Dimension.Buttom View

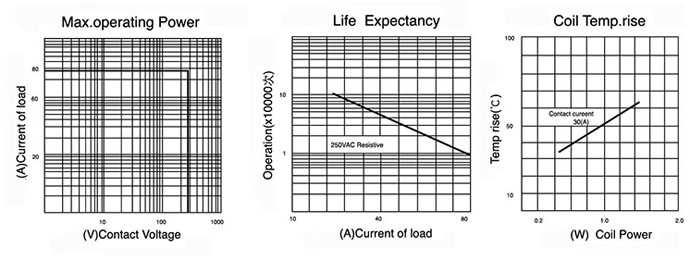

Reference Data
