 Features
20A-30A Contact Change-over Capacity
With installation base panel
Contact Ratings
|
Contact Ratings
|
1Z 1H 1D
|
|
Contact Resistance
|
100MΩ （at 1A 6VDC）
|
|
Contact Material
|
AgCdO
|
|
Contact Capacity
|
40A 250VAC / 30VDC
|
Specification
|
Insulation Resistance
|
1000MΩ 500VDC
|
|
Dielectric Strength
|
BCC 2500V 1 min
|
|
BOC 1200V 1 min
|
|
Operate Time
|
25ms/25ms
|
|
Terminal Type
|
Screw
|
Coil Ratings
|
Nominal Coil Power
|
DC : 2.0W AC 2.5VA
|
Coil Versions
|
Nominal Voltage VDC
|
Pull-in Voltage VDC
|
Release Voltage VDC
|
Coil Resistance Ω ：± 10%
|
|
6
|
4.8
|
0.60
|
20
|
|
12
|
9.6
|
1.20
|
65
|
|
24
|
19.2
|
2.40
|
320
|
|
48
|
38.4
|
4.80
|
1280
|
|
60
|
80.0
|
10.00
|
2800
|
|
110
|
88.0
|
11.0
|
9650
|
|
Nominal Voltage VAC
|
Pull-in Voltage VAC
|
Release Voltage VAC
|
Coil Resistance Ω ：± 10%
|
|
6
|
4.80
|
1.80
|
14.4
|
|
12
|
9.60
|
3.60
|
57
|
|
24
|
19.20
|
7.20
|
250
|
|
48
|
38.40
|
14.4
|
921
|
|
110/220
|
88.00
|
36.0
|
5000
|
|
220/240
|
176.00
|
72.0
|
19600/25040
|

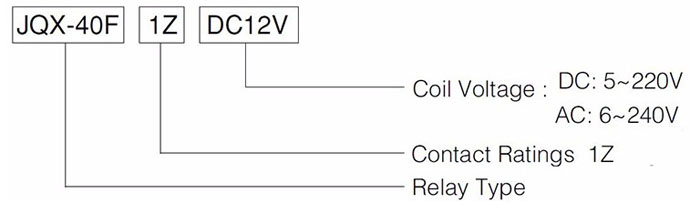

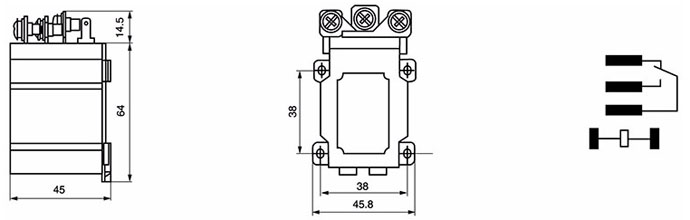

Dimension.Buttom View

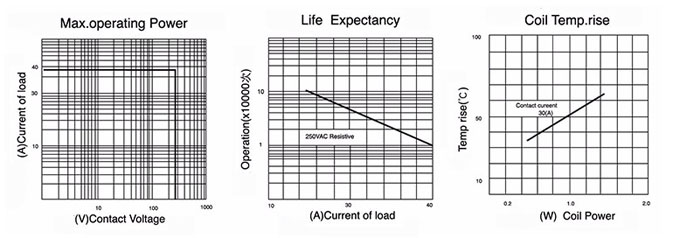

Reference Data
|
