 Electromagnetic relay power relay JQX-40F-2Z Relay

Features


40A Contact Change-over Capacity

Swift Connection

Fastness of Guide Rail


Contact Ratings

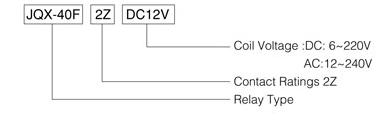

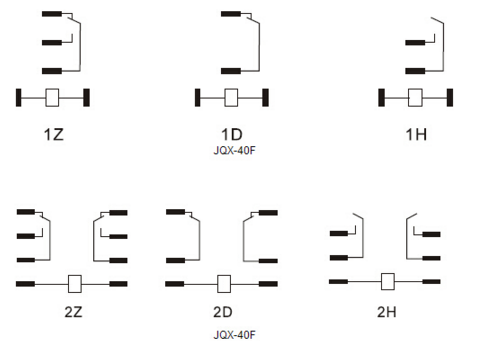

Contact Ratings 2Z 2H 2D
Contact Resistance 100mΩ (1A 6VDC)
Contact Material AgCdO
Contact Capacity 40A  250VAC / 28VDC

Specification


Insulation Resistance 1000MΩ  500VDC
Dielectric Strength BCC  2500V  1 min
BOC  1200V  1 min
Operate Time 25ms/25ms
Terminal Type Terminal mounting

Coil Ratings


Nominal Coil Power DC : 2.0W     AC  2.5VA


Coil Versions


Nominal Voltage VDC Pull-in Voltage VDC Release Voltage VDC Coil Resistance Ω :± 10%
6 4.8 0.60 20
12 9.6 1.20 65
24 19.2 2.40 320
48 38.4 4.80 1280
60 80.0 10.00 2800
110 88.0 11.0 9650
Nominal Voltage VAC Pull-in Voltage VAC Release Voltage VAC Coil Resistance Ω :± 10%
6 4.80 1.80 14.4
12 9.60 3.60 57
24 19.20 7.20 250
48 38.40 14.4 921
110/220 88.00 36.0 5000
220/240 176.00 72.0 19600/25040

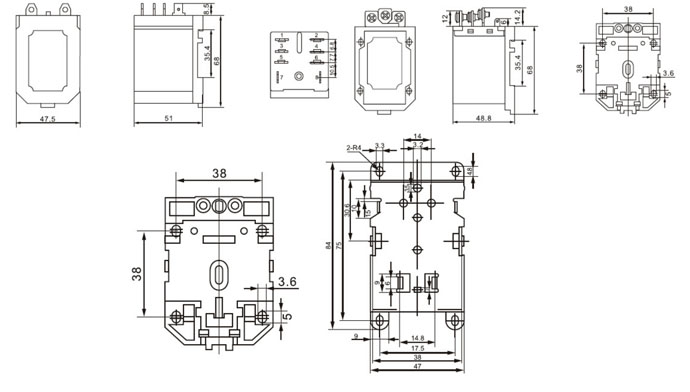

Dimension.Buttom View
