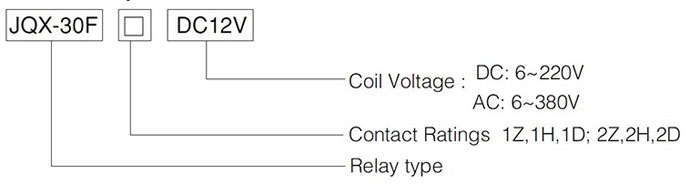

Features
30A Contact Change-over Capacity
With Opening and Dust-Proof Type
Contact Ratings
|
Contact Ratings
|
1Z,1H,1D/2Z,2H,2D
|
|
Contact Resistance
|
100MΩ （1A 6VDC）
|
|
Contact Material
|
AgCdO
|
|
Contact Capacity
|
30A 250VAC /28VDC
|
Specification
|
Insulation Resistance
|
1000MΩ 500VDC
|
|
Dielectric Strength
|
BCC 2500V 1 min
|
|
BOC 1200V 1 min
|
|
Operate Time
|
20ms/15ms
|
|
Terminal Type
|
Terminal
|
Coil Ratings
|
Nominal Coil Power
|
DC : 2.5W AC 4.0VA
|
Coil Versions
|
Nominal Voltage VDC
|
Pull-in Voltage VDC
|
Release Voltage VDC
|
Coil Resistance Ω ：± 10%
|
|
6
|
4.80
|
0.60
|
30
|
|
12
|
9.60
|
0.20
|
120
|
|
24
|
19.2
|
2.40
|
330
|
|
48
|
38.4
|
4.80
|
1820
|
|
60
|
48.0
|
6.00
|
2800
|
|
110
|
88.0
|
11.0
|
9650
|
|
Nominal Voltage VAC
|
Pull-in Voltage VAC
|
Release Voltage VAC
|
Coil Resistance Ω ：± 10%
|
|
12
|
9.60
|
3.60
|
11.2
|
|
24
|
19.20
|
7.20
|
4.5
|
|
48
|
38.40
|
14.40
|
100
|
|
110
|
88.00
|
36.00
|
940
|
|
220
|
176.00
|
72.00
|
3764
|
|
240
|
176.00
|
72.00
|
5050
|
Dimension.Buttom View

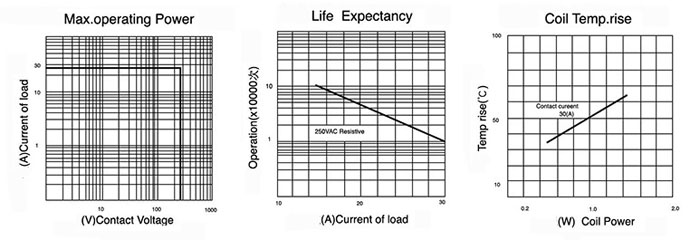

Reference Data
|
