Features
30A Carrying Current
Standard PC Layout
Contact Ratings
|
Contact Ratings
|
1H
|
1D
|
Z(NC)
|
1Z(NC)
|
|
Contact Resistance
|
20MΩ
|
|
Contact Material
|
Silver Alloy
|
|
Contact Capacity
|
1H: 30A 240VAC/28VDC 1D: 15A 240VAC/28VDC 1Z: 20A 240VAC/28VDC
|
Specification
|
Insulation Resistance
|
100MΩ 500VDC
|
|
Dielectric Strength
|
BCC 2500V 1 min
|
|
BOC 1500V 1 min
|
|
Operate Time
|
15ms/10ms
|
|
Terminal Type
|
PCB
|
Coil Ratings
Coil Versions
|
Nominal Voltage VDC
|
Pull-in Voltage (VDC)
|
Release Voltage (VDC)
|
|
Coil Resistance Ω ：± 10%
|
|
5
|
3.75
|
0.5
|
27
|
|
6
|
4.50
|
0.6
|
40
|
|
9
|
6.75
|
0.9
|
97
|
|
12
|
9.00
|
1.2
|
155
|
|
15
|
11.25
|
1.5
|
256
|
|
18
|
13.50
|
1.8
|
380
|
|
24
|
18.00
|
2.1
|
660
|
|
48
|
36.00
|
4.8
|
2560
|
|
70
|
52.50
|
7.0
|
5500
|
|
110
|
82.50
|
11.0
|
13450
|

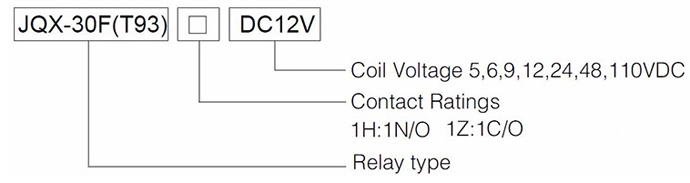

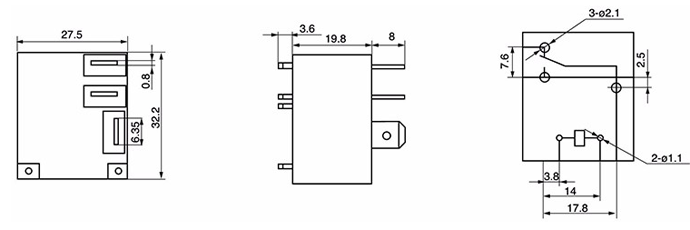

Dimension.Buttom View

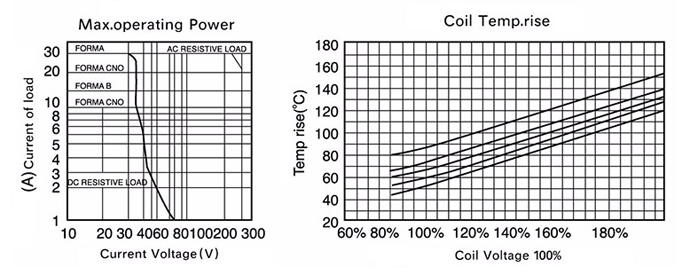

Reference Data
|
