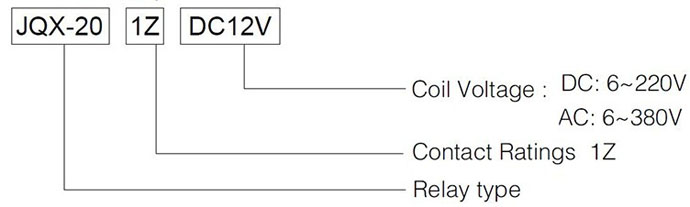

 High Power Relay JQX-20A 1Z Universal Power relay 12v

Features


20A-50A Contact Change-over Capacity

With installation base panel


Contact Ratings


Contact Ratings 1Z
Contact Resistance 30MΩ (at 1A 6VDC)
Contact Material AgCdO
Contact Capacity 20A  250VAC /28VDC

Specification


Insulation Resistance ≥500MΩ  500VDC
Dielectric Strength BCC  2500V  1 min
BOC  1200V  1 min
Operate Time ≤20ms/20ms
Terminal Type Screw

Coil Ratings


Nominal Coil Power        DC : 2.0W  AC  2.5VA

Coil Versions


Nominal Voltage VDC Pull-in Voltage VDC Release Voltage VDC Coil Resistance Ω :± 10%
6 4.20 0.60 30
12 8.40 0.20 120
24 16.8 2.40 330
48 33.6 4.80 1820
60 42.0 6.00 2800
110 88.0 11.0 9650
Nominal Voltage VAC Pull-in Voltage VAC Release Voltage VAC Coil Resistance Ω :± 10%
12 9.60 3.60 11.2
24 19.20 7.20 4.5
48 38.40 14.40 100
110 88.00 36.00 940
220 176.00 72.00 3764
240 176.00 72.00 5050

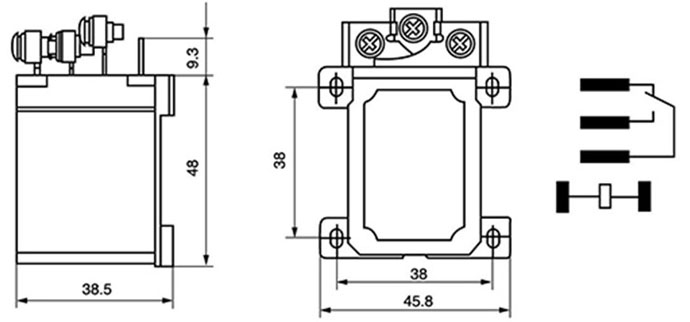

Dimension.Buttom View

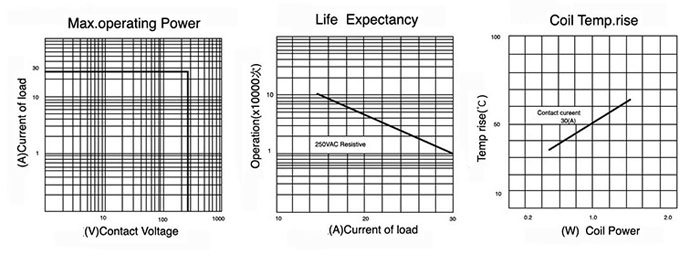

Reference Data
