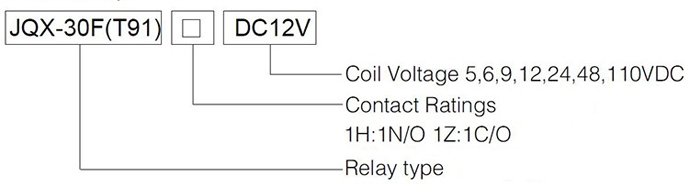

 JQX-16F gerneral purpose relay 12v 30a relay T91 relay

Features


30A carrying current

SPST-NO&SPDT

PCB & PC terminals


Contact Ratings


                 Contact Ratings                                   1H         1D    1Z
Contact Resistance 50MΩ (at 1A 6VDC)
Contact Material Silver Alloy
Contact Capacity 7200VA/560W 3600VA/280W 4800VA/560W 2400VA/280W

Specification


Insulation Resistance 100MΩ  500VDC
Dielectric Strength BCC  2500V  1 min
BOC  1500V  1 min
Operate Time 15ms/10ms
Terminal Type PCB

Coil Ratings


Nominal Coil Power                 0.9W


Coil Versions


Nominal Voltage VDC Coil Resistance at 20℃ ±10% ( Ω ) Max Operate Voltage (VDC) Min Release Voltage (VDC) Max Applicable Voltage (VDC)
0.9W
5 27 3.75 0.5 6.5
6 40 4.50 0.6 7.8
9 97 6.75 0.9 11.7
12 155 9.00 1.2 15.6
24 660 18.00 2.4 31.2
48 2560 36.00 4.8 62.4
110 13450 82.50 11.0 143.0

Dimension.Buttom View

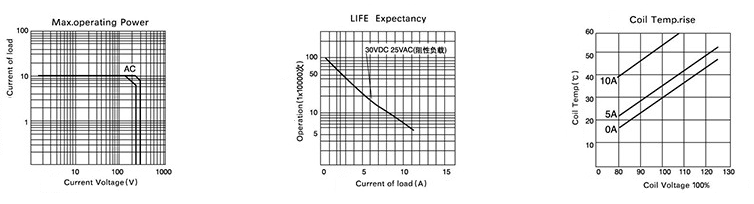

Reference Data
