T90 pcb mounting relay 20a power relay 0.9w JQX-15F

Features

30A carrying current

SPST-NO&SPDT

PCB

Contact Ratings

Contact Ratings	1H 1D 1Z
Contact Resistance	50MΩ （at 1A 6VDC）
Contact Material	Silver Alloy
Contact Capacity	1H : 30A 240VAC / 28VDC 1D : 15A 240VAC / 28VDC 1Z : 20A 240VAC / 28VDC

Specification

Insulation Resistance	100MΩ 500VDC
Dielectric Strength	BCC 15000V 1 min
Dielectric Strength	BOC 1500V 1 min
Operate Time	15ms/10ms
Terminal Type	PCB

Coil Ratings

Nominal Coil Power

0.9W

Coil Versions

Nominal Voltage VDC	Coil Resistance at 20℃ ±10% ( Ω ）		Max Operate Voltage (VDC)	Min Release Voltage (VDC)	Max Applicable Voltage (VDC)
	0.9W
5	27		3.75	0.5	6.5
6	40		4.50	0.6	7.8
9	97		6.75	0.9	11.7
12	155		9.00	1.2	15.6
24	660		18.00	2.4	31.2
48	2560		36.00	4.8	62.4
110	13450		82.50	11.0	143.0

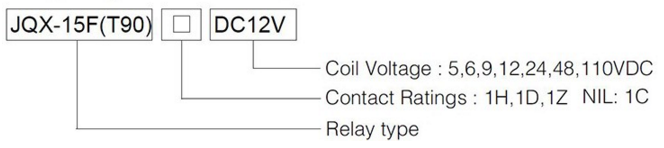

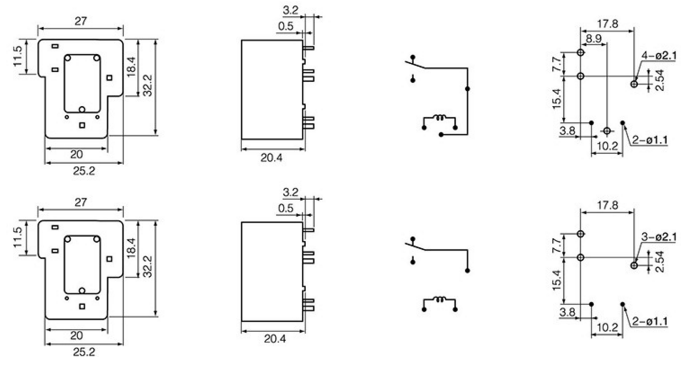

Dimension.Buttom View

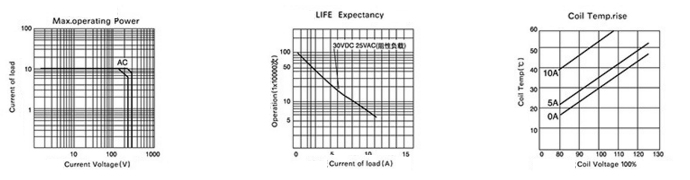

Reference Data
