Features
10A high power relay
1A,1B,1C,2A,2B,2C configurations
Sealed version available
Contact Ratings
|
Contact Ratings
|
1A 1B 1C
|
2A 2B 2C
|
|
Contact Resistance
|
50MΩ （at 1A 6VDC）
|
|
Contact Material
|
Silver Alloy
|
|
Contact Capacity
|
10A 250VAC /28VDC
|
5A-7A 250VAC /125VDC
|
|
TV-5
|
Specification
|
Insulation Resistance
|
100MΩ 500VDC
|
|
Dielectric Strength
|
BCC 5000V 1 min
|
|
BOC 1000V 1 min
|
|
Operate Time
|
15ms/15ms
|
|
Terminal Type
|
PCB
|
Coil Ratings
|
Nominal Coil Power
|
0.35W / 0.72W
|
Coil Versions
|
Nominal Voltage VDC
|
Coil Resistance at 20℃ ±10% ( Ω ）
|
Max Operate Voltage (VDC)
|
Min Release Voltage (VDC)
|
Max Applicable Voltage (VDC)
|
|
0.53W
|
0.72W
|
|
3
|
17
|
12.5
|
2.25
|
0.3
|
4.2
|
|
5
|
47
|
36
|
3.75
|
0.5
|
7.0
|
|
6
|
68
|
50
|
4.50
|
0.6
|
8.4
|
|
9
|
160
|
115
|
6.75
|
0.9
|
12.6
|
|
12
|
275
|
200
|
9.00
|
1.2
|
16.8
|
|
24
|
1100
|
800
|
18.00
|
2.4
|
33.6
|
|
48
|
4170
|
3200
|
36.00
|
4.8
|
67.2
|

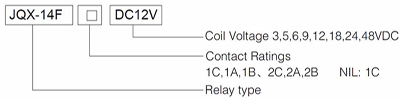

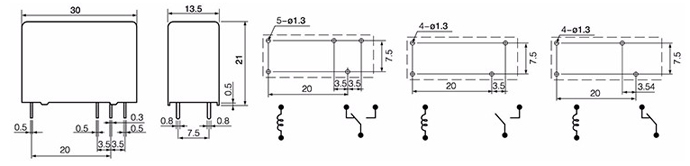

Dimension.Buttom View

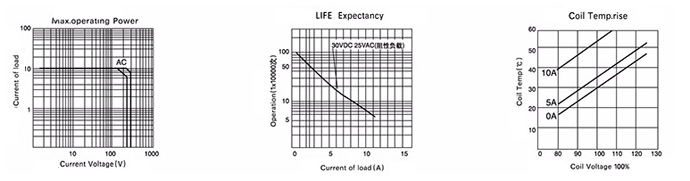

Reference Data
|
