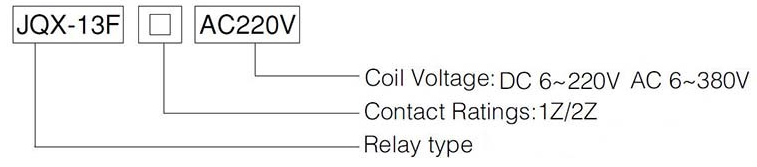

Features
Awide range of relay versions
10A Carring Current
Mached sakets available
Contact Ratings
|
Contact Ratings
|
1Z 1H 1D
|
2Z
|
|
Contact Resistance
|
50mΩ （at 1A 16VDC）
|
|
Contact Material
|
Sliver Alloy
|
|
Contact Capacity
|
15A / 250VAC 28VDC
|
15A / 250VAC 28VDC
|
Specification
|
Insulation Resistance
|
500MΩ 500VDC
|
|
Dielectric Strength
|
BCC 1500V 1min
|
|
BOC 1000V 1min
|
|
COC 1500V 1min
|
|
Operate Time
|
25ms/15ms
|
|
Terminal Type
|
PCB , Socket
|
Coil Versions
|
Nominal Voltage VDC
|
Pull-in Voltage VDC
|
Release Voltage VDC
|
Coil Resistance Ω ：± 10%
|
|
5
|
4.8
|
0.50
|
30
|
|
6
|
4.8
|
0.60
|
40
|
|
12
|
9.6
|
1.20
|
160
|
|
24
|
19.2
|
2.40
|
640
|
|
48
|
38.4
|
4.80
|
2560
|
|
110
|
88.0
|
11.0
|
12100
|
|
Nominal Voltage VAC
|
Pull-in Voltage VAC
|
Release Voltage VAC
|
Coil Resistance Ω ：± 10%
|
|
6
|
4.80
|
1.80
|
12
|
|
12
|
9.60
|
3.60
|
42
|
|
24
|
19.2
|
7.20
|
168
|
|
48
|
38.4
|
14.4
|
675
|
|
110
|
96.0
|
36.0
|
3500
|
|
220/240
|
176.0
|
66.0
|
14000/16500
|

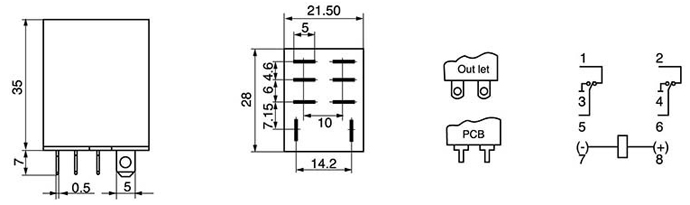

Wiring Diagram & Bottom View
