 JQX-115F pcb relay 10a mini power relay

Features


SPST-NO & SPDT

Standard PC layout


Contact Ratings


Contact Ratings 1A  1B  1C 2A  2B  2C
Contact Resistance 50MΩ (at 1A 6VDC)
Contact Material Silver Alloy
Contact Capacity 20A
120VAC / 24VDC

Specification


Insulation Resistance 100MΩ  500VDC
Dielectric Strength BCC  5000V  1 min
BOC  1000V  1 min
Operate Time 15ms/10ms
Terminal Type PCB

Coil Ratings


Nominal Coil Power  0.4W


Coil Versions


Nominal Voltage VDC Coil Resistance at 20℃ ±10% ( Ω ) Max Operate Voltage (VDC) Min Release Voltage (VDC) Max Applicable Voltage (VDC)
0.4W
3 22.5 2.25 0.3 3.9
5 62.5 3.75 0.5 6.5
6 90 4.50 0.6 7.8
9 202 6.75 0.9 11.7
12 360 9.00 1.2 15.6
24 1440 18.00 2.4 31.2
48 5760 36.00 4.8 62.4

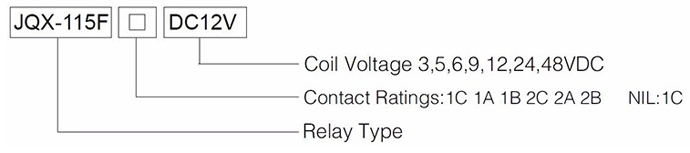

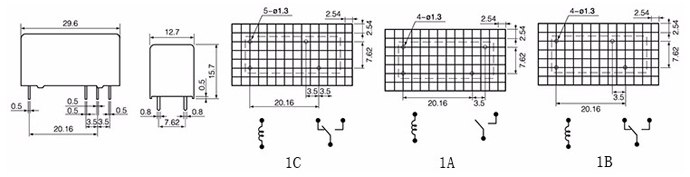

Dimension.Buttom View

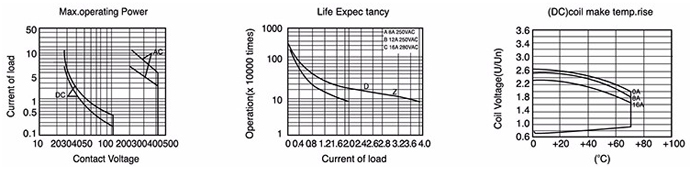

Reference Data
