PCB Relay T73 mini relay 12VDC 7A 5 Pins JQC-3F relay

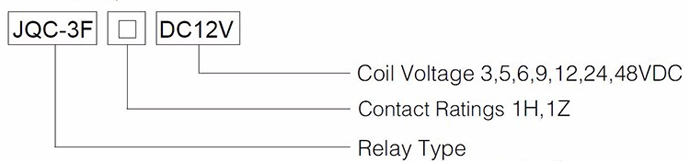

Features

12A carrying current

1H and 1Z contact form available construction

Standard PC layout

Contact Ratings

Contact Ratings	1H 1Z
Contact Resistance	100MΩ （at 1A 6VDC）
Contact Material	Silver Alloy
Contact Capacity	10A 250VAC / 7A 250VDC

Specification

Insulation Resistance	100MΩ 500VDC
Dielectric Strength	BCC 1500V 1 min
Dielectric Strength	BOC 750V 1 min
Operate Time	10ms/5ms
Terminal Type	PCB

Coil Ratings

Nominal Coil Power

0.36W 0.45W

Coil Versions

Nominal Voltage VDC	Coil Resistance at 20℃ ±10% ( Ω ）		Max Operate Voltage (VDC)	Min Release Voltage (VDC)	Max Applicable Voltage (VDC)
Nominal Voltage VDC	0.36W	0.45W	Max Operate Voltage (VDC)	Min Release Voltage (VDC)	Max Applicable Voltage (VDC)
3	25	20	2.25	0.3	3.9
5	70	55	3.75	0.5	6.5
6	100	80	4.50	0.6	7.8
9	220	180	6.75	0.9	11.7
12	400	320	9.00	1.2	15.6
24	1600	1280	18.00	2.4	31.2
48	6400	5100	36.00	4.8	62.4

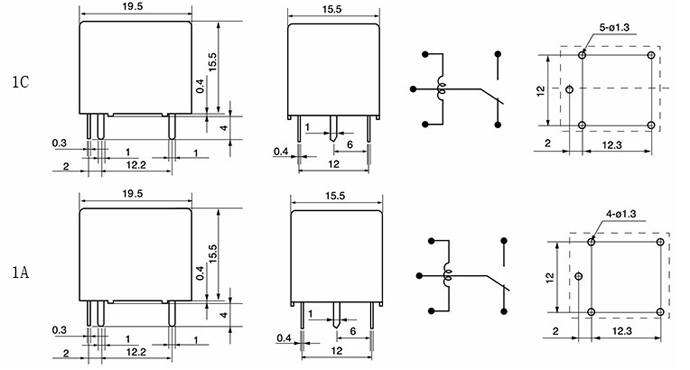

Dimension.Buttom View

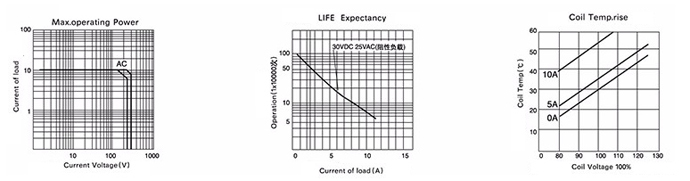

Reference Data
