Industry Solid State Relay

Features :

Load Current : 40~500A

Built-in RC

With LED Indicator

Dielectric Strength 4000V

Zero-Cross or Random turn-on

DC or AC Control

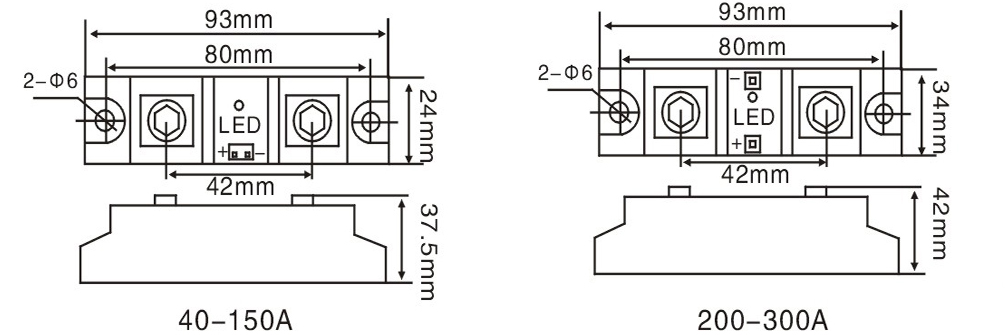

Outline & Installation Dimensions (mm) :

Specification :

Control Voltage Range 3-32VDC 70-280VAC
Max Input Current 12mA 16mA
Must Operation Voltage 4.5VDC 70VAC
Must Release Voltage 3VDC 60VAC
Load Voltage Range 24-480VAC
Peak Voltage 800V
Load Current 40A,60A,80A,100A,120A,150A,200A,250A,290A,300A,400A,500A
Max off-state leakage current 4mA
Max on-state voltage drop 2.5V
L*W*H (mm) 94L*25W*38H ( 40-150A) 94L*34W*42H ( 200-300A)
Weight  (Approx ) 130g 210g
Dielectric Strength ( Input to output ) 4000Vrms
Dielectric Strength ( Input, output to base) 2500Vrms
Operating Temperature -20℃~80℃
Certification CE
