Inductive Proximity Sensor TL-N8/10/20M

Advantages:

1) Compact volume, Diversified exterior

2) High precision of repeated location

3) Good performance of anti-interference
4) High on-off frequency, Wide voltage range

5) Dust proof, vibration proof, water proof and oil proof

6) With short-circuit protection and inverted connecting protection

Specification:

Outward appearance code				TL-N8 / LMF6	TL-N10 / LMF7	TLN20 / LMF10
Flush	Detection distance			8mm	10mm	15mm
		NPN	NO	TL-N8ME1 / LMF6-3008NA	TL-N10ME1 / LMF7-3010NA	LMF10-3015NA
	DC		NC	TL-N8ME2 / LMF6-3008NB	TL-N10ME2 / LMF7-3010NB	LMF10-3015NB
	6		NO+NC	TL-N8ME3 / LMF6-3008NC	TL-N10ME3 / LMF7-3010NC	LMF10-3015NC
	～	PNP	NO	TL-N8MF1 / LMF6-3008PA	TL-N10MF1 / LMF7-3010PA	LMF10-3015PA
	36		NC	TL-N8MF2 / LMF6-3008PB	TL-N10MF2 / LMF7-3010PB	LMF10-3015PB
	V		NO+NC	TL-N8MF3 / LMF6-3008PC	TL-N10MF3 / LMF7-3010PC	LMF10-3015PC
		two wire system	NO	TL-N8MD1 / LMF6-3008LA	TL-N10MD1 / LMF7-3010LA	LMF10-3015LA
		two wire system	NC	TL-N8MD2 / LMF6-3008LB	TL-N10MD2 / LMF7-3010LB	LMF10-3015LB
	AC	SRC Control label silicon	NO	TL-N8MY1 / LMF6-2008A	TL-N10MY1 / LMF7-2010A	LMF10-2015A
	90		NC	TL-N8MY2 / LMF6-2008B	TL-N10MY2 / LMF7-2010B	LMF10-2015B
	～250		NO+NC		TL-N10MY3 / LMF7-2010C
	V	Relay output
Non-flush	Detection distance			10mm	15mm	20mm
		NPN	NO	LMF6-3010NA	LMF7-3015NA	TLN20ME1 / LMF10-3020NA
			NC	LMF6-3010NB	LMF7-3015NB	TLN20ME2 / LMF10-3020NB
	DC		NO+NC	LMF6-3010NC	LMF7-3015NC	TLN20ME3 / LMF10-3020NC
	6	PNP	NO	LMF6-3010PA	LMF7-3015PA	TLN20MF1 / LMF10-3020PA
	～		NC	LMF6-3010PB	LMF7-3015PB	TLN20MF2 / LMF10-3020PB
	36		NO+NC	LMF6-3010PC	LMF7-3015PC	TLN20MF3 / LMF10-3020PC
	V	two wire system	NO	LMF6-3010LA	LMF7-3015LA	TLN20MD1 / LMF10-3020LA
		two wire system	NC	LMF6-3010LB	LMF7-3015LB	TLN20MD2 / LMF10-3020LB
	AC	SRC Control label silicon	NO	LMF6-2010A	LMF7-2015A	TLN20MY1 / LMF10-2020A
	90		NC	LMF6-2010B	LMF7-2015B	TLN20MY2 / LMF10-2020B
	～250		NO+NC		LMF7-2015C
	V	Relay output
Control output		DC		200mA	200mA	300mA
Control output		SCR/Relay		300mA	300mA	500mA
Output voltage dropDC/AC				DC<3V AC<10V	DC<3V AC<10V	DC<3V AC<10V
Consumption current				DC<15mA AC<10mA	DC<15mA AC<10mA	DC<15mA AC<10mA
Standard detected object				30×30×1(A3 iron)	35×35×1(A3 iron)	45×45×1(A3 iron)
Repeated precision				0.05	0.05	0.05
DC/AC Response frequency				200Hz/25Hz	200Hz/25Hz	100Hz/25Hz
Working environment temperature				–25℃～75℃	–25℃～75℃	–25℃～75℃
Insulation resistance				50MΩ	≥50MΩ	≥50MΩ
Shell material				ABS Resin	ABS Resin	ABS Resin
Protection grade				IEC standard IP67	IEC standard IP67	IEC standard IP67
Altemative model at home and abroad

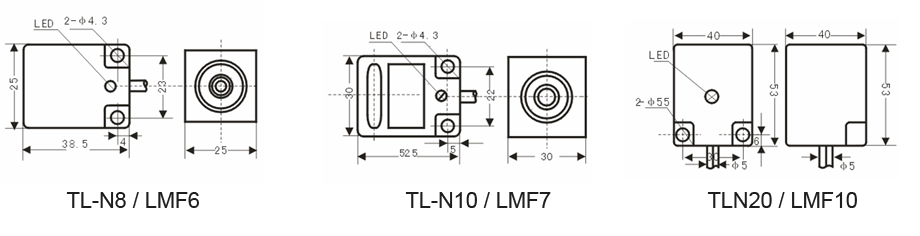

Dimensions:

Series connection and parallel connection:

Explanation of technical terms:

Detection distance

Move the detected object according to assigned method, the distance from the reference position (reference plane)to the detecting action(resetting)

Setting distance

Including the effects like temperature and voltage, without error action the distance passed through from the practical detection surface to the objected object.

Standard detected object

Take as standard detected object to detect the basic performance. the shape, size and material have been determined.

Differential distance

The absolute value of the distance difference between the distance to action and the distance To resetting

Response time

TI:when the objected object enters the action zone, the time from proximity sensor being in action state to output appearance.

T2:the time from leaving action zone to output disappearance.

Response frequency

Work out the tracking output times per second by repeatedly approaching the detected object

Brief detection method sees the above diagram

Main features:

Take high frequency oscillation type proximity sensor(front detector)as representative example to briefly explain general features of proximity switch.

Item	Explanation	Features	◆ About detected object When the material of detected object is non magnetic metal, the distance of action should descend. But when the foil material is approximately thicker than a.01mm,the detection distance will be the same as that of magnetic object If the film plating is extremely thin or non-conductive, detection cannot be conducted. The effect of cladding material, take note of the changing of detection distance. ◆ About ambient weather In order to maintain reliable action and long service life, please avoid the(outdoor)occasion beyond the stipulated ambient temperature. Do not drench it with Water or water-soluble cutting lubricant when it is used with cover, although the proximity sensor is waterproof. Do not used in the occasions with chemical agents, especially strong base acid, nitric acid, hot strong sulfuric acid and so on. ◆ About maintenance and overhaul In order to keep the proximity sensor to work stably for long time, the following regular examinations should be performed just like general control. 1. Check the installation position of detected object and proximity sensor if any deviation, loosening or deformation exists. 2. Check the attached wires and connecting parts if any loosening bad contact or wire breaking off exists 3. Check if there is any metallic powder accumulation or not 4. Check if the temperature condition and surrounding environment condition are normal or not 5. Check if the detection distance is normal or not
The size of detected object and detection distance	If the detected object is square metal sheet with constant thickness (t=1mm), detect at detection distance X when change its side length dmm. X(mm)	When the detected object is bigger than standard detection distance is constant. According to different Machine type, sometimes the features will that mentioned on the left. To through type, the detection object is like cylinder metal bar
The thickness of detected object and detection distance	Detect at detection distance Xmm(front detector)when change the thickness of the assigned standard detected object 1mm.	For more than 1mm thick magnetic metal like iron on the main, the detection distance will not change.
The effects resulted from the Thickness of detected object and cladding material	Because the detection to standard detected object will be effected by its shape, size, material, and various cladding material, confirm through detection distance Xmm measurement.	The effects resulted from detection distance and cladding material of the metal excluded iron will be different according to different machine type On the main, the machine type which detects all the metals will not be effected by cladding material.

Correct use, installation and cautions:

◆Mounting screw switch

◆ Do not tighten with over-torque when mounting the switch. Adopt toothed washer when tightening

◆ Mounting non screw type pillar switch

◆ When adopt adjusting screw, the tightening torque should be within 2-4kgf-cm

◆ Protection against the interference of non detected object

◆ When mounting the proximity switch on the metal part,
do refer to the following diagram. Remain a certain space in advance according to the shown diagram so as to prevent the switch from error action

◆ Protection against mutual interference between switches

◆ Mount according to the size which is bigger than that in the following diagram to prevent the switch from error action resulted from mutual interference if mount the switches contra-positively or in parallel

◆ Adjustable switch action distance(sensitivity)

◆ The action distance(sensitivity)of proximity switch can be adjusted by the means of trimming potentiometer. Increase the action distance and reduce sensitivity when turn clockwise. Vice versa. Do not use in the critical state of max. action distance.

◆Guard of switch lead-wire

◆ When mount switch, fix the lead-wire at a distance about 10cm from the switch with wire clip so as to prevent the switch lead-wire from damage from outer force

■ Cautions

◆DC switch should adopt insulation transformer and ensure stable voltage mains corrugation.

◆IF any electric power line or dynamic line passes through the surrounding of switch lead-wire, in order to prevent the switch

from damage or error action, cover the metal bushing on the switch lead-wire and ground it to the earth.

◆Set the switch use distance within the rated distance to avoid the effects from temperature and voltage

◆Wiring while power-on is strictly prohibited. Connecting the wires strictly according to the wiring diagram and output

return elementary diagram.

◆If there are any special requirements to the switch like water proof, oil proof, acid proof, base proof, high temperature proof

or with any other specifications, the users are required to give clear indication when placing an order. We can produce accord

-ing to the requirements of the use.

Application illustration of proximity switch:
