Product

The HH52,53 and 54 are a series of miniature general purpose relays. specially designed of users demanding small size, sturdy construction and high electrical capacity. Mechanisms are furnished in polycarbonate dust-proof enclosures and are recommended for a multitude of electrical control applications for their reliability and compact size. Contiunous duty coils. either AC or DC are available for voltages up to 240VAC or 120VDC. Contacts can be supplied in 2PDT, 3PDT,4PDT arrangements. Continuous current rating are 3, 5 and 7 Amps, Many terminal types are available for solder, plug-in or printed circuit board mounting.

Features

• 3, 5 and 7 Amp contacts.
• 2PDT , 3PDT and 4PDT.
• Reliable operation, long service life
• High dielectric strength
• Solder , PC board , wire wrap and screw terminal socket.
• AC or DC coils
• Barriered contacts for opposite polarity available
• Dust-proof enclosures

Contact Ratings

Coil Versions

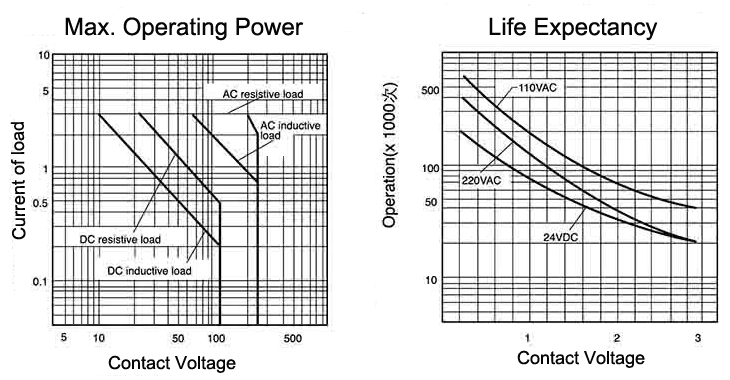

Reference Data
