 JQX-14FC 2Z general purpose relay / pcb relay miniature relays

Features

1A,1B,1C / 2A,2B,2C configurations

Strength between coil and contact is 5kv

With AC Voltage input

LED available

With matched socket


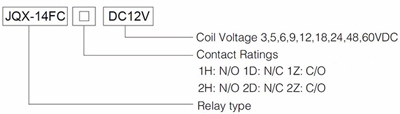

Contact Ratings


Contact Ratings 1H  1Z 2H  2Z
Contact Resistance 50MΩ (1A  6VDC
Contact Material Sliver Alloy
Contact Capacity 10A  220VAC / 30VDC 5A  220VAC / 30VDC
TV-5


Specification


Insulation Resistance 1000MΩ  500VDC
Dielectric Strength BCC  5000V  1 min
BOC  1000V  1 min
Operate Time 15ms/15ms
Terminal Type PCB

Coil Ratings


Nominal Coil Power 0.55W


Coil Versions


Nominal Voltage VDC Pull-in Voltage VDC Release Voltage VDC Coil Resistance Ω :± 10%
3 2.25 0.3 20
5 3.75 0.5 50
6 4.50 0.6 68
9 6.75 0.9 160
12 9.00 1.2 270
18 13.5 1.5 650
24 18.0 2.4 1080
48 36.0 4.8 4340
60 45.0 6.0 7000

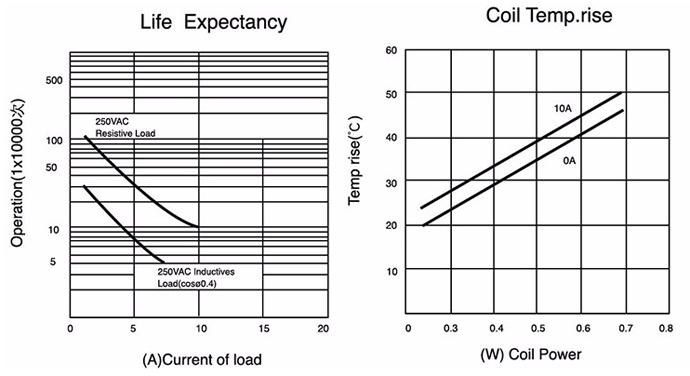

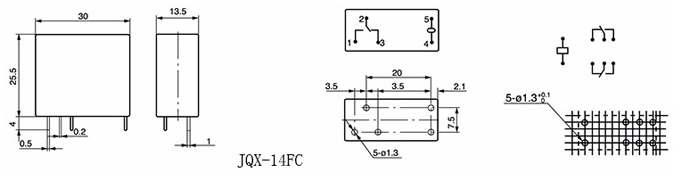

Dimension.Buttom View
