White Shell DC Solid State Relay


DC Control

Photo isoation

Low on-state Resistance

With LED Indicator

Panel Mount

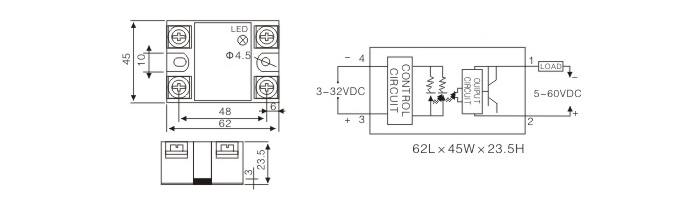

Outline & Installation Dimensions (mm)

Specification :

Load Current 10A,25A,40A,50A,60A,70A,80A,100A
Load Voltage 5-60VDC / 24-240VDC
Control Voltage 3-32VDC
Control Current DC: 6-25mA
On Voltage ≤ 1.5VAC
Off Leakage Current ≤ 2mA
On-Off Time ≤ 10mS
Dielectric Strength 2000VAC
Insulation Resistance 500MΩ / 500VDC
Ambient Temperature -30℃~+75℃
Mounting Methods Bolt
The Work Instructions LED
Weight 140g
