Single Phase DC-DC Solid State Relay


DC Control


Photo Isoation

Low on-state resistance

With LED Indicator

Dielectric Strength 2500V

Panel Mount

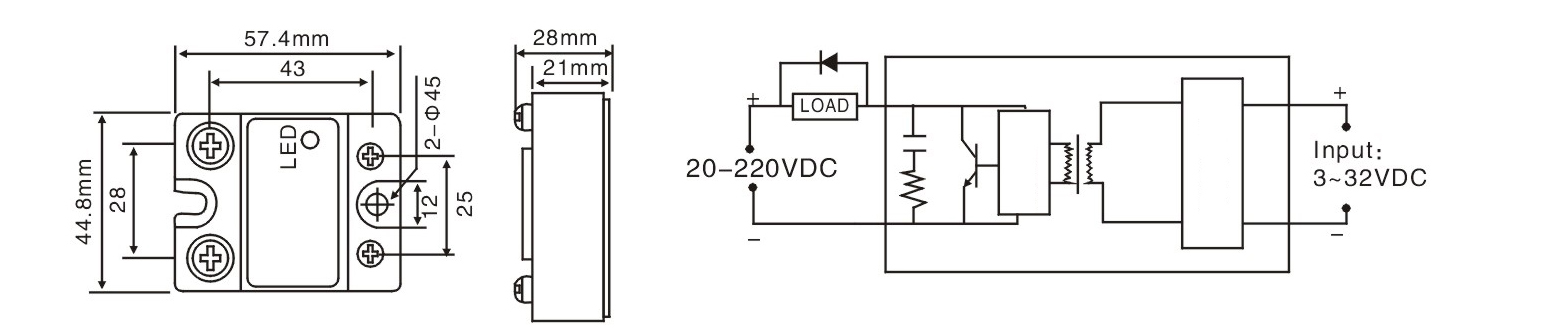

Outline & Installation Dimensions (mm ) :

Specification :

Control Voltage Range (VDC) 3-32VDC
Max Input Current 40mA
Must Operation Voltage 3VDC
Must Release Voltage 2VDC
Load Voltage Range 24-220VDC, 480VDC
Load Current 10A,15A,20A,25A,30A,40A,50A,60A,80A,100A
Max Off-State Leakage Current 2mA
Max On-State Voltage Drop ≤1V
L-W-H(mm) 57.4L*44.8W*28H
Weight (approx.) 100g
Response Time 1/2 cycle +1m Sec
Dielectric Strength ( Input , Output to base) 2500VAC
Operating Temperature -20℃~70℃
Certification CE
