 White Shell DC-AC Solid State Relay

Features :

Load Current : 10~100A

With LED Indicator

Zero-Cross or Random turn-on

DC or AC control

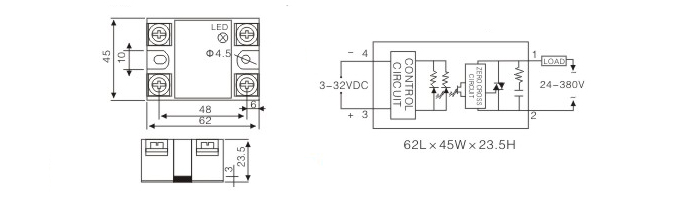

Outline & Installation Dimensions(mm) :

Specification :


Load Current 10A,15A,25A,40A,50A,60A,75A,80A,90A,100A
Load Voltage 24-380VAC / 90-480VAC
Control Voltage 3-32VDC
Control Current DC : 3-25mA
On Voltage ≤ 1.5VAC
Off Leakage Current ≤ 2mA
On-Off Time ≤ 10mS
Dielectric Strength 2500VAC
Insulation Resistance
500MΩ / 500VDC
Ambient Temperature
-30℃~75℃
Mounting  Methods
Bolt
The work Instructions LED
Weight 140g
