 White Shell AC-AC Solid State Relay

Feature :

Load Current : 10~100A

With LED Indicator

Zero-cross or Random turn-on

DC or AC control

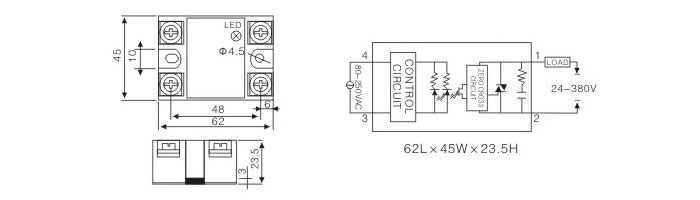

Outline & Installation Dimensions (mm) :


Specification :


Load Current 10A,15A,25A,40A,50A,60A,75A,80A,90A,100A
Load Voltage 24-380VAC / 90-480VAC
Control Voltage 80-250VAC
Control Current AC : 12mA
On Voltage ≤ 1.5VAC
Off Leakage Current ≤ 2mA
On-Off Timer ≤ 10mS
Dielectric Strength 2500VAC
Insulation Resistance 500MΩ /500VDC
Ambient Temperature -30℃~+75℃
Mounting Methods Bolt
The work Instructions LED
Weight 140g
