 Three phase solid state relay

Features:

DC or AC Control

Load Current : 10~120A

Built in RC

With LED Indicator

Dielectric strength 4000V

Zero-Cross or Random turn-on

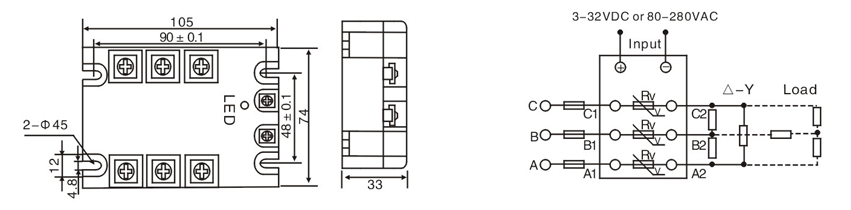

Outline & Installation Dimensions (mm):


Speicifcation :


Control Voltage Range 3-32VDC 70-280VAC
Max Input Current 40mA 15mA
Must Operation Voltage 4VDC 70VAC
Must Release Voltage 2.7VDC 50VAC
Load Voltage Range 24-480VAC
Peak Voltage 1000V
Load Current 10A,15A,20A,25A,30A,40A,50A,60A,75A,80A,100A,120A
Max Off-state Leakage Current ≤8mA
Max On-State Voltage Drop
1.5V
L-W-H (mm)
105L*74W*33H
Weight ( Approx) 500g
Dielectric Strength (input to output )
4000VAC
Dielectric strength ( input, output to base )
2500VAC
Operating Temperature -20℃~80℃
Certification CE
