H3BA series super time relay can be widely used in machines and equipment needing self-control of high precision and reliability . It is characteristic of small size, light weight,compact structure, high dependable and effcient ,long life etc.

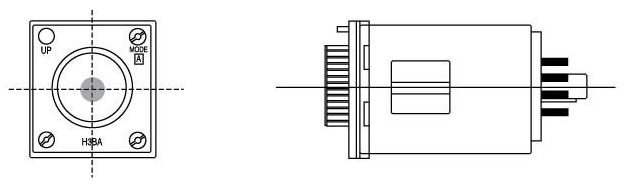

Dimensions (mm )
Wiring Diagram :
Main Features :
|
Model Number
|
H3BA-□
|
Outline Dimensions
|
48*48*95
|
Working Voltage
|
AC24V、36V、110V、220V、380V、DC12V、DC24V
|
Work Mode
|
A : On delay B: Cycle extended C : Release delay D : Off delay
|
Time Range
|
0.5s , 1s , 10s , 0.5m , 1m , 5m , 10m , 0.5h , 1h , 5h , 10h , 100h
|
Contact Form
|
Group 2 with a delay start, reset, gate
|
Contact Capacity
|
3A 220VAC (Resistance )
|
Installation mode
|
Device type
|
Ambient temperature
|
-10°C~+55°C
|
Electrical Life
|
100000
|
|
